BABS1100
PLANAR SCHOTTKY RECTIFIER ABS/SOManufacturer: Diodes Incorporated
Categories: Bridge Rectifiers
Quality Control: Learn More

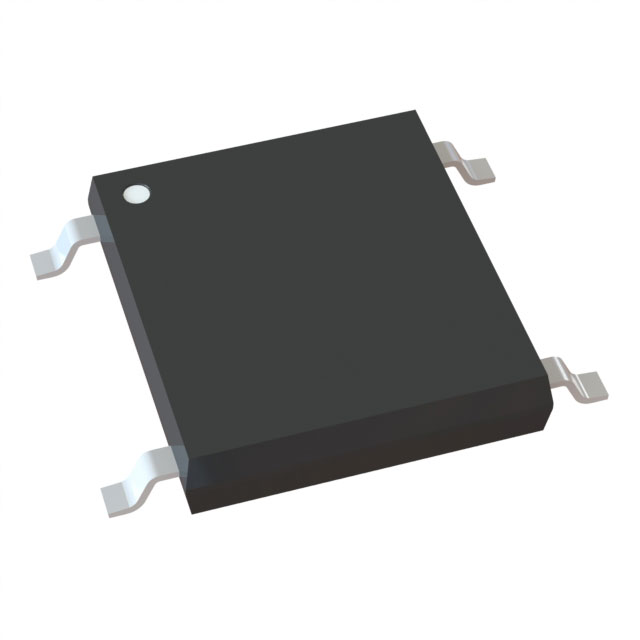

Diodes Incorporated BABS1100 is a single-phase planar Schottky bridge rectifier designed for surface mount applications. This component features a 1 A average rectified current (Io) and a 100 V peak reverse voltage (Vr). The Schottky technology ensures low forward voltage drop, with a maximum of 850 mV at 1 A, and a low reverse leakage current of 10 µA at 100 V. Operating across a temperature range of -55°C to 150°C (TJ), the BABS1100 is housed in a 4-SMD, Gull Wing package, also known as the ABS supplier device package. This rectifier is commonly utilized in power supply circuits, automotive electronics, and industrial control systems where efficient rectification and low voltage drop are critical. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | ABS |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 100 V |
