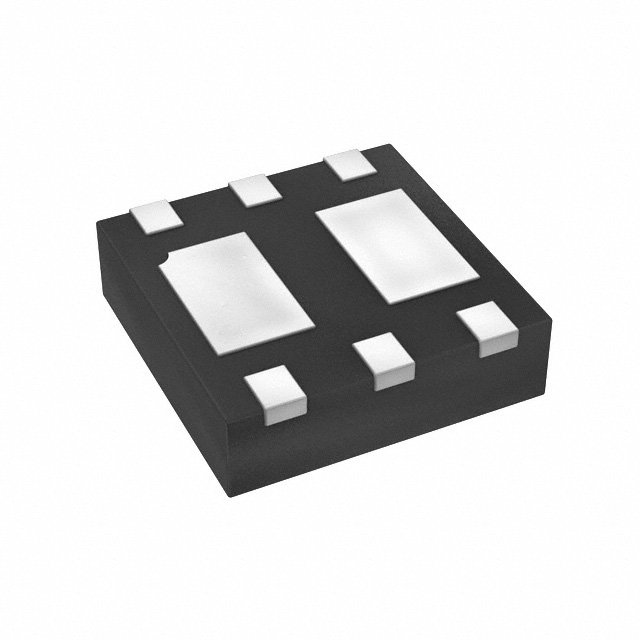

ZXTP56020FDBQ-7
TRANS 2PNP 20V 2A U-DFN2020-6Manufacturer: Diodes Incorporated
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 2 PNP (Dual) 20V 2A 405mW Surface Mount U-DFN2020-6
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | 2 PNP (Dual) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power - Max | 405mW |
| Current - Collector (Ic) (Max) | 2A |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| Vce Saturation (Max) @ Ib, Ic | 390mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 250 @ 100mA, 2V |
| Frequency - Transition | - |
| Supplier Device Package | U-DFN2020-6 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
