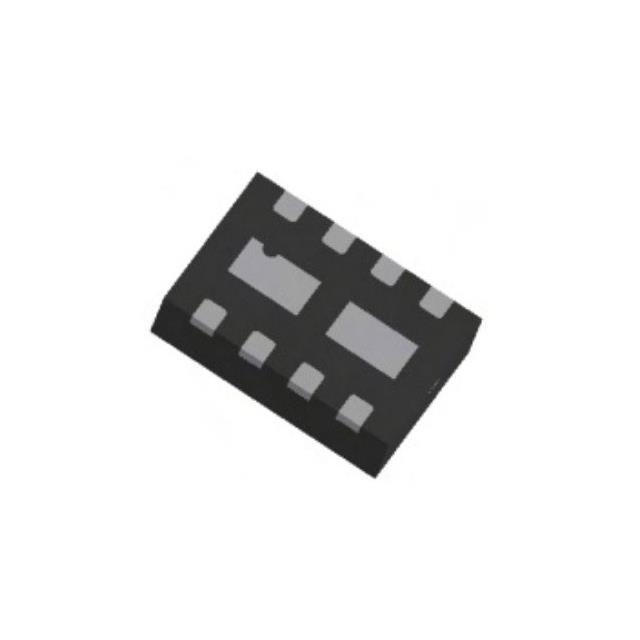

ZXTC6719MCTA
TRANS NPN/PNP 50V/40V 4A/3A 8DFNManufacturer: Diodes Incorporated
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 50V, 40V 4A, 3A 165MHz, 190MHz 1.7W Surface Mount DFN3020B-8
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power - Max | 1.7W |
| Current - Collector (Ic) (Max) | 4A, 3A |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 40V |
| Vce Saturation (Max) @ Ib, Ic | 320mV @ 200mA, 4A / 370mV @ 250mA, 2.5A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 2A, 2V / 60 @ 1.5A, 2V |
| Frequency - Transition | 165MHz, 190MHz |
| Supplier Device Package | DFN3020B-8 |
Request a Quote
