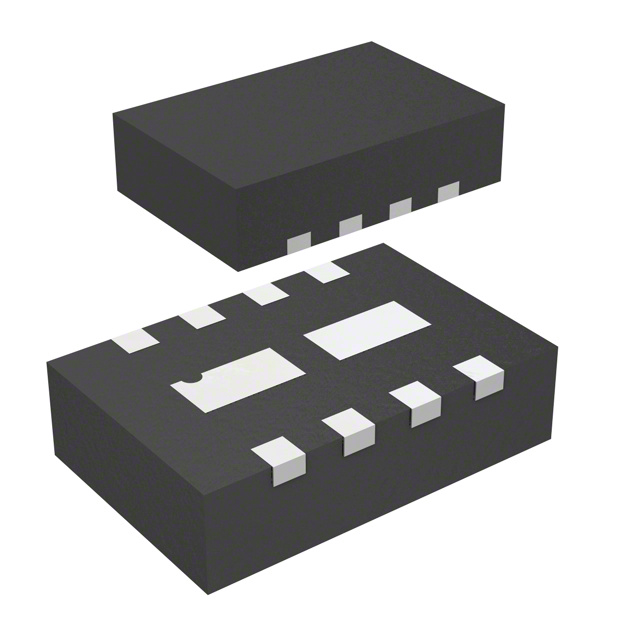

ZXTC6718MCTA
TRANS NPN/PNP 20V 4.5A/3.5A 8DFNManufacturer: Diodes Incorporated
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 20V 4.5A, 3.5A 140MHz, 180MHz 1.7W Surface Mount W-DFN3020-8
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power - Max | 1.7W |
| Current - Collector (Ic) (Max) | 4.5A, 3.5A |
| Voltage - Collector Emitter Breakdown (Max) | 20V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 125mA, 4.5A / 300mV @ 350mA, 3.5A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2A, 2V / 150 @ 2A, 2V |
| Frequency - Transition | 140MHz, 180MHz |
| Supplier Device Package | W-DFN3020-8 |
