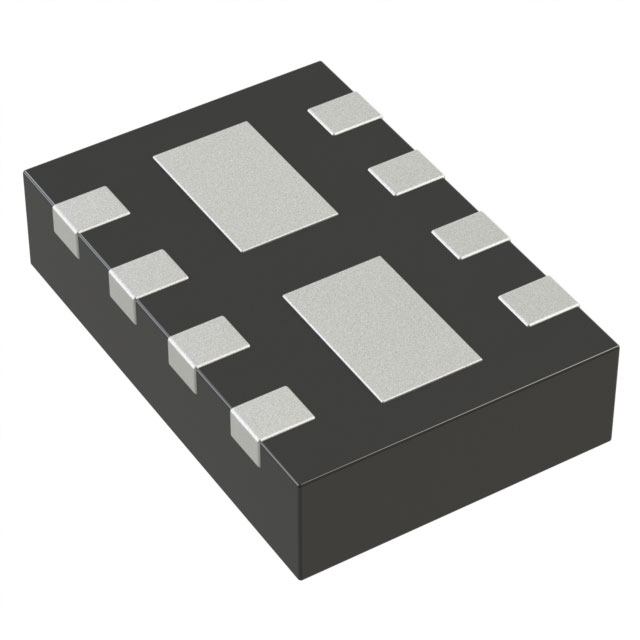

ZXTC4591AMCQTA
SS MID-PERF TRANSISTOR U-DFN3020Manufacturer: Diodes Incorporated
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Bipolar (BJT) Transistor Array 1 NPN, 1 PNP 40V 2.5A, 2A 150MHz 1.5W Surface Mount W-DFN3020-8
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Power - Max | 1.5W |
| Current - Collector (Ic) (Max) | 2.5A, 2A |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 500mA, 5V / 300 @ 100mA, 5V |
| Frequency - Transition | 150MHz |
| Supplier Device Package | W-DFN3020-8 |
