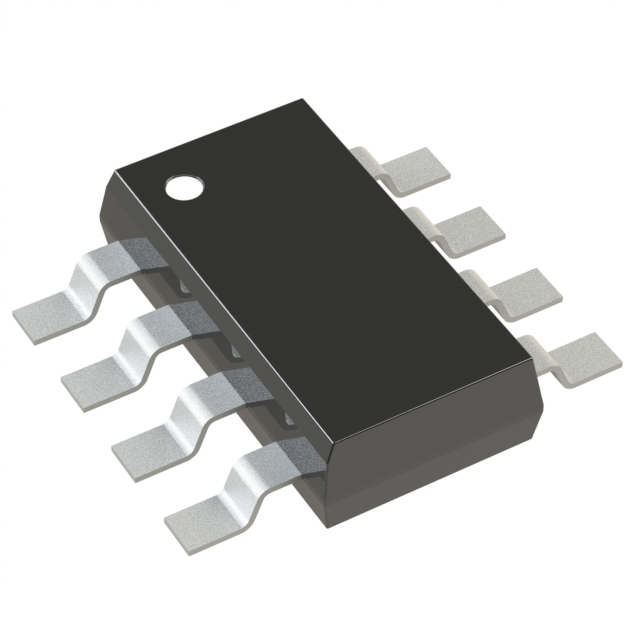

ZDT1147TC
TRANS 2PNP 12V 5A SOT223Manufacturer: Diodes Incorporated
Categories: Bipolar Transistor Arrays
Quality Control: Learn More
Diodes Incorporated ZDT1147TC is a dual PNP bipolar junction transistor (BJT) array housed in a SOT-223-8 surface mount package. This component offers a collector-emitter breakdown voltage of 12V and can handle a continuous collector current of up to 5A. With a maximum power dissipation of 2.75W, it features a minimum DC current gain (hFE) of 250 at 500mA and 2V, and a transition frequency of 115MHz. The saturation voltage (Vce Sat) is a maximum of 380mV at 50mA base current and 5A collector current, with a collector cutoff current of 100nA. The ZDT1147TC is supplied in Tape & Reel (TR) packaging. This device is commonly utilized in power management and general-purpose switching applications across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-223-8 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 PNP (Dual) |
| Operating Temperature | - |
| Power - Max | 2.75W |
| Current - Collector (Ic) (Max) | 5A |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| Vce Saturation (Max) @ Ib, Ic | 380mV @ 50mA, 5A |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 250 @ 500mA, 2V |
| Frequency - Transition | 115MHz |
| Supplier Device Package | SM-8 |
