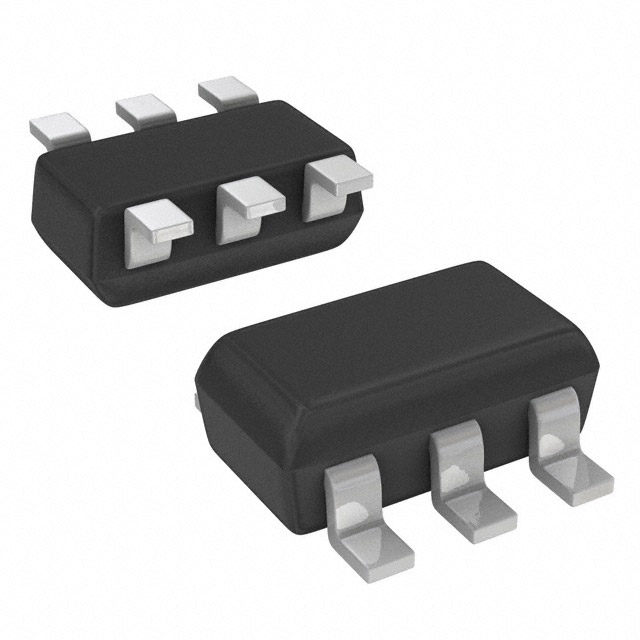

DCX123JU-7-F
TRANS NPN/PNP PREBIAS SOT363Manufacturer: Diodes Incorporated
Categories: Bipolar Transistor Arrays, Pre-Biased
Quality Control: Learn More
Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 250MHz 200mW Surface Mount SOT-363
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Power - Max | 200mW |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 10mA, 5V |
| Frequency - Transition | 250MHz |
| Resistor - Base (R1) | 2.2kOhms |
| Resistor - Emitter Base (R2) | 47kOhms |
| Supplier Device Package | SOT-363 |
