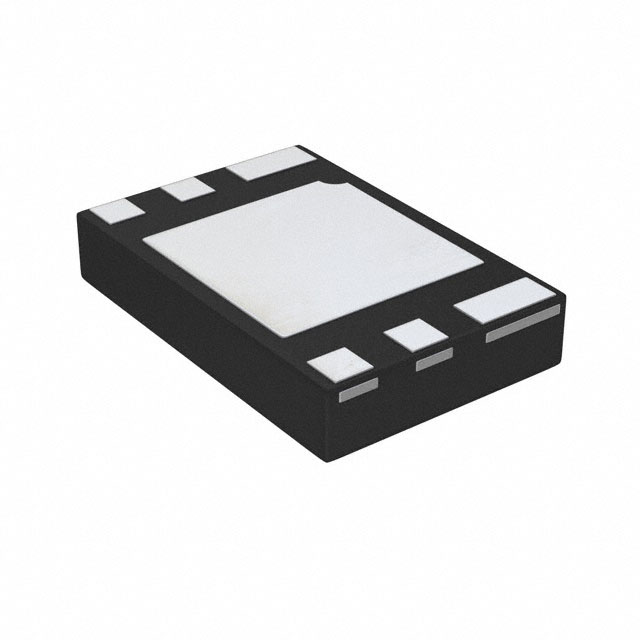

AP9211SA-AA-HAC-7
IC BATT PROT LI-ION 1CELL 6UDFNManufacturer: Diodes Incorporated
Categories: Battery Management
Quality Control: Learn More
The Diodes Incorporated AP9211SA-AA-HAC-7 is a single-cell lithium-ion battery protection IC. This device, housed in a compact 6-UDFN (U-DFN2030-6 Type C) package with an exposed pad, offers robust protection against over-current and over-voltage conditions. Designed for surface mount applications, it operates within a temperature range of -40°C to 85°C. Its primary function is to safeguard lithium-ion battery packs in various demanding applications, including portable electronics, automotive systems, and industrial equipment. The component is supplied in tape and reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Function | Battery Protection |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | U-DFN2030-6 (Type C) |
| Fault Protection | Over Current, Over Voltage |
