ZXCD1000EQ16TC
IC AMP CLASS D STEREO 1W 16QSOPManufacturer: Diodes Incorporated
Categories: Audio Amplifiers
Quality Control: Learn More
Diodes Incorporated ZXCD1000EQ16TC is a 2-channel stereo Class D amplifier IC. This component is designed for 12V to 18V supply operation, delivering 1W per channel into an 8-ohm load. The ZXCD1000EQ16TC features integrated depop, short-circuit, and thermal protection for robust operation. Its 16-QSOP-EP (16-LSSOP Exposed Pad) package facilitates surface mounting and efficient thermal management. Typical applications include consumer electronics and audio systems requiring efficient Class D amplification. The operating temperature range is -40°C to 70°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Depop, Short-Circuit and Thermal Protection |
| Packaging | Tape & Reel (TR) |

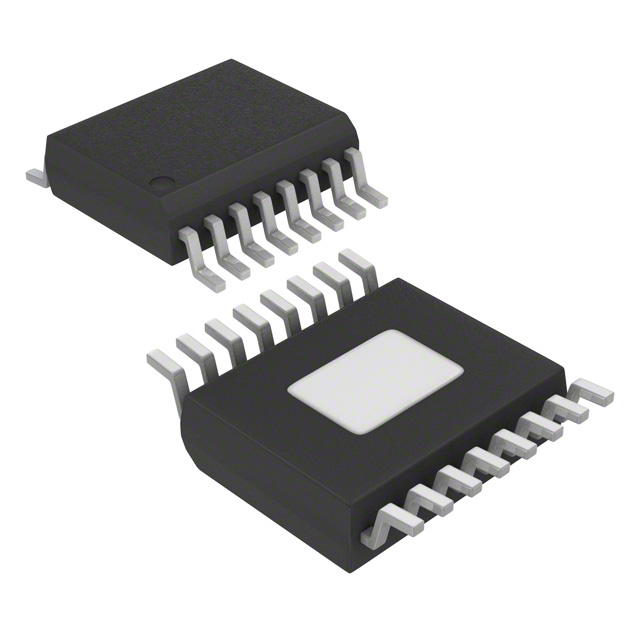

| Package / Case | 16-LSSOP (0.154"", 3.90mm Width) Exposed Pad |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 70°C (TA) |
| Voltage - Supply | 12V ~ 18V |
| Max Output Power x Channels @ Load | 1W x 2 @ 8Ohm |
| Supplier Device Package | 16-QSOP-EP |
