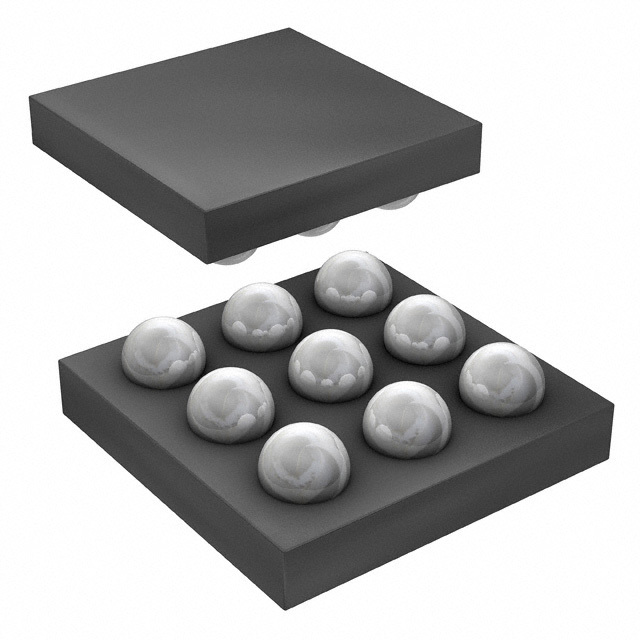

PAM8303CAZN
IC AMP CLASS D MONO 3W 9WCSPManufacturer: Diodes Incorporated
Categories: Audio Amplifiers
Quality Control: Learn More
Diodes Incorporated PAM8303CAZN is a highly efficient, 3W, mono Class D audio amplifier packaged in a 9-WCSP (1.45x1.45) for compact designs. This IC features integrated protection against output short circuits and thermal shutdown, enhancing system reliability. It operates from a 2.8V to 5.5V supply range, delivering 3W into a 4 Ohm load. The PAM8303CAZN is suitable for applications requiring high-fidelity audio amplification in space-constrained environments, including portable electronics and communication devices. Its depop feature ensures clean power-up and power-down sequencing. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Depop, Short-Circuit and Thermal Protection |
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-WFBGA, WLCSP |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.8V ~ 5.5V |
| Max Output Power x Channels @ Load | 3W x 1 @ 4Ohm |
| Supplier Device Package | 9-WCSP (1.45x1.45) |
