PI6LC48P25104LEX
156.25MHZ LVPECL SYNTHESIZERManufacturer: Diodes Incorporated
Categories: Application Specific Clock/Timing
Quality Control: Learn More

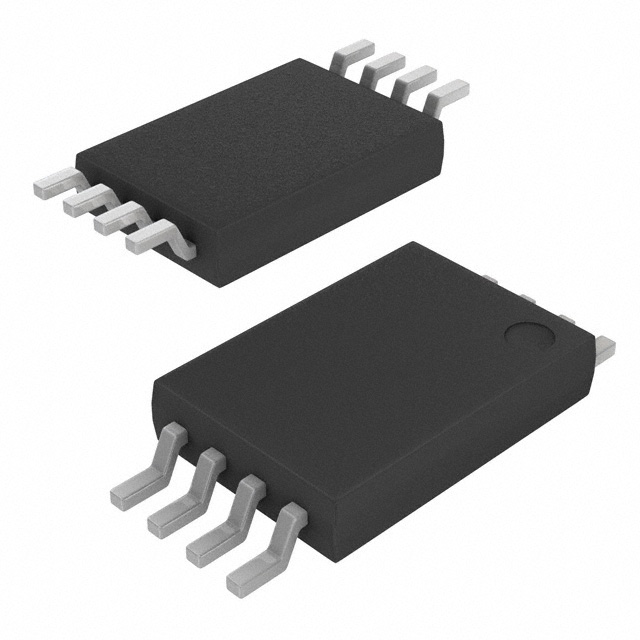

Diodes Incorporated HiFlex™ PI6LC48P25104LEX is a high-performance LVPECL synthesizer designed for demanding timing applications. This single-output clock generator IC operates up to 187.5MHz, featuring a 1:1 input-to-output ratio and utilizing a crystal input for precise frequency generation. The PLL-based architecture ensures stable clock distribution. Ideal for Ethernet infrastructure and high-speed networking, it is packaged in an 8-TSSOP for surface mount integration. The device supports a supply voltage range of 2.375V to 3.465V and operates within an industrial temperature range of -40°C to 85°C. The PI6LC48P25104LEX is supplied in Tape & Reel packaging.
Additional Information
Series: HiFlex™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Frequency - Max | 187.5MHz |
| Input | Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.465V |
| Main Purpose | Ethernet |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 8-TSSOP |
| PLL | Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
