ZMT32TA
SENSOR ANGLE 180DEG SMDManufacturer: Diodes Incorporated
Categories: Angle, Linear Position Measuring
Quality Control: Learn More

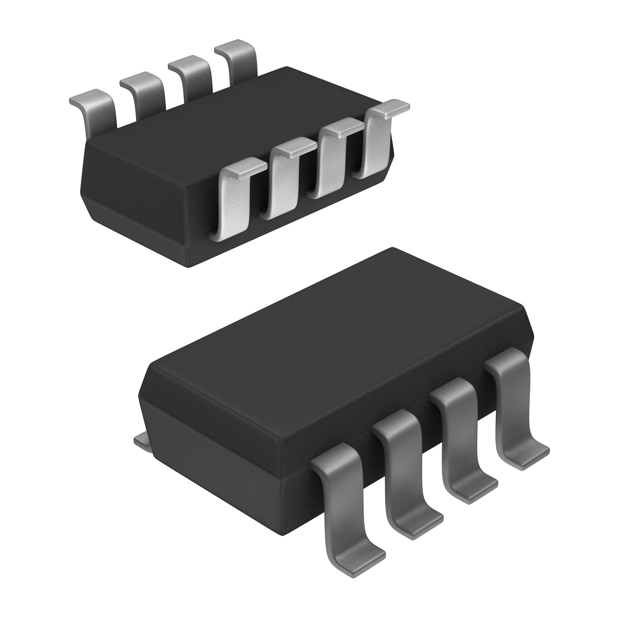

Diodes Incorporated ZMT32TA is a magnetoresistive angle sensor designed for precise angular measurement. This SMT component, housed in a SOT-223-8 (SM8) package, utilizes a Wheatstone bridge output to provide accurate positional feedback. The ZMT32TA is engineered to measure angles from 0 to 180 degrees and requires an external magnetic actuator. Its surface mount termination style and operational temperature range of -40°C to 160°C make it suitable for demanding applications in the automotive and industrial sectors. The device operates with a supply voltage ranging from 5V to 8.5V and features a nominal resistance of 3 kOhms.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-223-8 |
| Mounting Type | Surface Mount |
| Output | Wheatstone Bridge |
| Operating Temperature | -40°C ~ 160°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 5V ~ 8.5V |
| Linearity | - |
| Linear Range | - |
| Actuator Type | External Magnet, Not Included |
| Technology | Magnetoresistive |
| Resistance Tolerance | - |
| For Measuring | Angle |
| Supplier Device Package | SM8 |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180° |
| Output Signal | - |
| Resistance | 3 kOhms |
| Programmable | - |
