PS508LEX
IC MUX 8:1 200OHM 16TSSOPManufacturer: Diodes Incorporated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 8:1 200Ohm 16-TSSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 200Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TSSOP |
| Voltage - Supply, Single (V+) | 10V ~ 36V |
| Voltage - Supply, Dual (V±) | ±5V ~ 18V |
| Charge Injection | 2pC |
| Crosstalk | -96dB @ 1MHz |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 6Ohm |
| Switch Time (Ton, Toff) (Max) | 210ns, 191ns |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 24pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Number of Circuits | 1 |
Request a Quote
Clients Also Buy

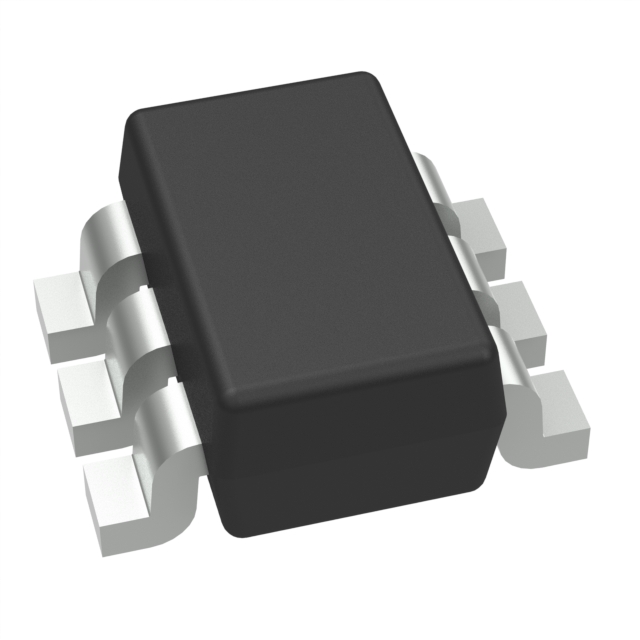

PI5A3157BC6EX-55
