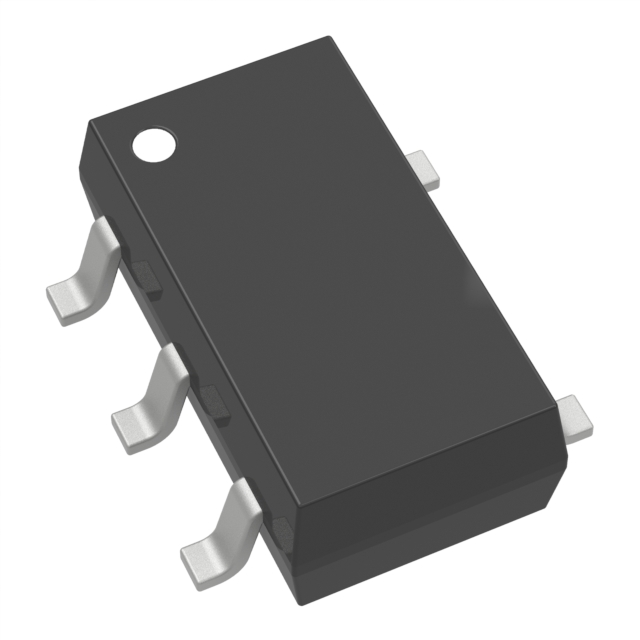

PI5A4599BCEX
IC SWITCH SPDT X 1 11OHM SC70-6Manufacturer: Diodes Incorporated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 2:1 11Ohm SOT-363-6 (SC-70)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 11Ohm |
| -3db Bandwidth | 350MHz |
| Supplier Device Package | SOT-363-6 (SC-70) |
| Voltage - Supply, Single (V+) | 1.6V ~ 6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 5pC |
| Crosstalk | -82dB @ 1MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 150mOhm |
| Switch Time (Ton, Toff) (Max) | 15ns, 7ns |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 1 |
