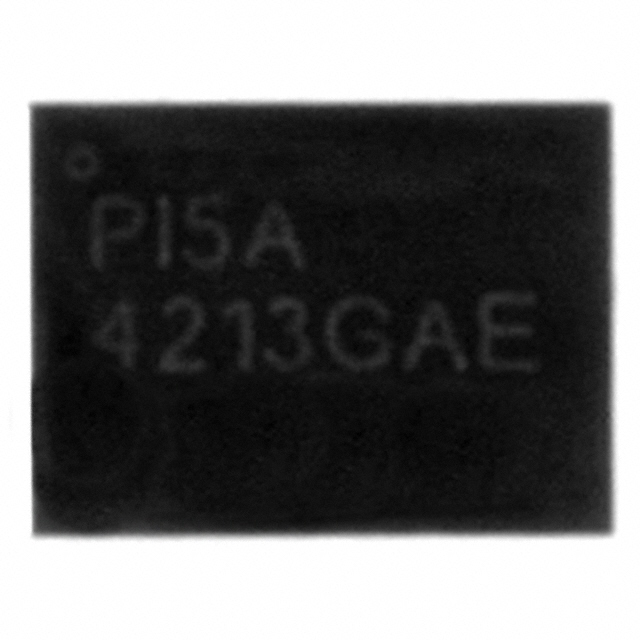

PI5A4213GAEX
IC SWITCH SP3T X 2 2OHM 12CSPManufacturer: Diodes Incorporated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Diodes Incorporated PI5A4213GAEX is a dual 3:1 analog switch featuring 2 Ohm on-resistance. This 2-circuit device utilizes an SP3T (Single Pole Triple Throw) configuration per circuit. Operating from a single supply voltage range of 1.65V to 5.5V, it offers a -3dB bandwidth of 30MHz. Key performance metrics include a maximum channel-to-channel resistance matching of 100mOhm and a charge injection rating of 35pC. Leakage current is specified at a maximum of 80nA. The component is housed in a compact 12-CSP (2.0x1.5) package, suitable for surface mounting. Typical applications include consumer electronics and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 2Ohm |
| -3db Bandwidth | 30MHz |
| Supplier Device Package | 12-CSP (2.0x1.5) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 35pC |
| Crosstalk | -72dB @ 100kHz |
| Switch Circuit | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 100mOhm (Max) |
| Switch Time (Ton, Toff) (Max) | 15ns, 12ns |
| Channel Capacitance (CS(off), CD(off)) | 50pF |
| Current - Leakage (IS(off)) (Max) | 80nA |
| Number of Circuits | 2 |
