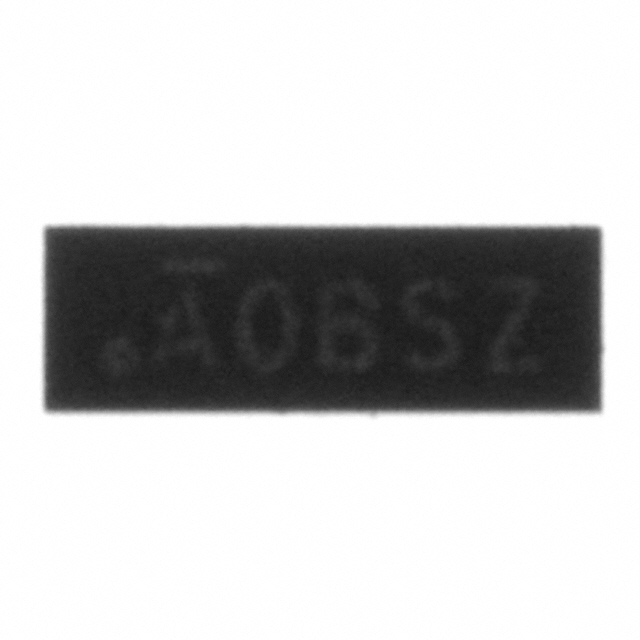

PI5A3158ZAEX
IC MUX 12TDFNManufacturer: Diodes Incorporated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Diodes Incorporated PI5A3158ZAEX is a 12-channel analog multiplexer/demultiplexer designed for high-performance signal routing applications. This device features a 12-TDFN (3x1) package, facilitating compact board layouts. Its precision switching capabilities are suitable for demanding applications across industrial automation, consumer electronics, and automotive systems where reliable signal path management is critical. The surface mount design ensures efficient integration into modern PCB assemblies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | - |
| On-State Resistance (Max) | - |
| -3db Bandwidth | - |
| Supplier Device Package | 12-TDFN (3x1) |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | - |
| Channel-to-Channel Matching (ÃŽ”Ron) | - |
| Switch Time (Ton, Toff) (Max) | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
