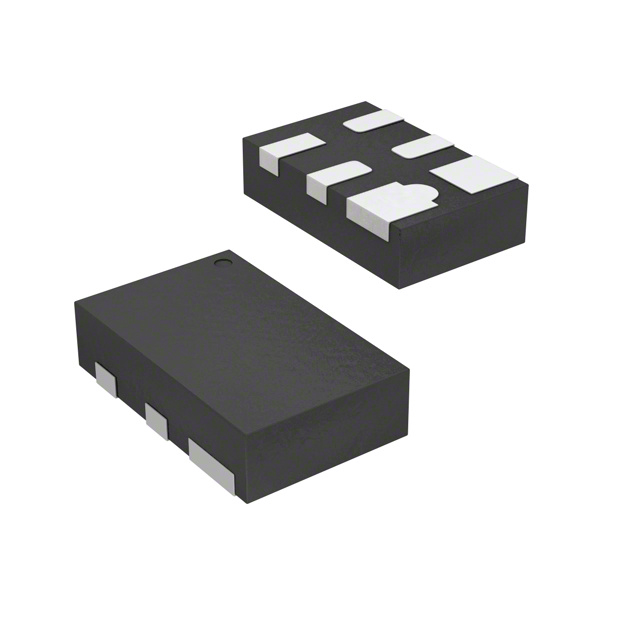

PI5A3157BZUEX
IC SWITCH SPDT X 1 13OHM 6UDFNManufacturer: Diodes Incorporated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Diodes Incorporated PI5A3157BZUEX is a single-pole, double-throw (SPDT) analog switch. This device features a 2:1 multiplexer/demultiplexer configuration with a maximum on-state resistance of 11 Ohms. The PI5A3157BZUEX offers a -3dB bandwidth of 350MHz and exhibits low channel capacitance of 2.5pF. Channel-to-channel resistance matching (?Ron) is specified at 150 mOhms. Charge injection is a low 7pC, and crosstalk is rated at -64dB at 10MHz. Maximum leakage current (IS(off)) is 100nA. The switch supports a single supply voltage range from 1.65V to 5.5V. Switching times are a maximum of 5.2ns for turn-on and 4.5ns for turn-off. This component utilizes a 6-UDFN (1x1) package and is supplied in Tape & Reel. Applications include consumer electronics and general-purpose signal routing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 11Ohm |
| -3db Bandwidth | 350MHz |
| Supplier Device Package | 6-UDFN (1x1) |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 7pC |
| Crosstalk | -64dB @ 10MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 150mOhm |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 4.5ns |
| Channel Capacitance (CS(off), CD(off)) | 2.5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Number of Circuits | 1 |
