PI5A124TEX-1413

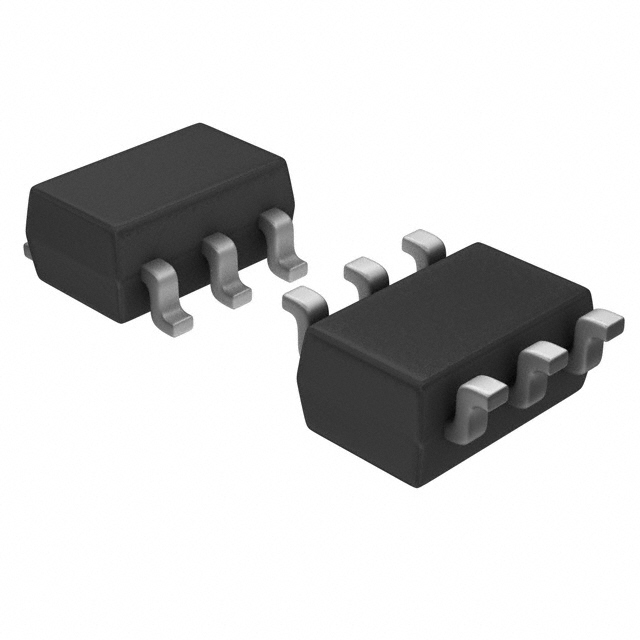

IC SWITCH SPDT X 1 10OHM SOT23-6Manufacturer: Diodes Incorporated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Diodes Incorporated PI5A124TEX-1413 is a single-pole, double-throw (SPDT) analog switch. This 2:1 multiplexer/demultiplexer circuit features a low on-resistance of 10 Ohms (max) and a channel capacitance of 5.5pF. The device operates from a single supply voltage range of 2V to 6V. With a typical charge injection of 1.6pC and a crosstalk of -43dB at 10MHz, it is suitable for applications requiring signal integrity. The switch time (Ton, Toff) is a maximum of 15ns and 7ns, respectively. This component is available in a SOT-23-6 surface mount package, supplied on tape and reel. It finds use in consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 10Ohm |
| -3db Bandwidth | 326MHz |
| Supplier Device Package | SOT-23-6 |
| Voltage - Supply, Single (V+) | 2V ~ 6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 1.6pC |
| Crosstalk | -43dB @ 10MHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 200mOhm |
| Switch Time (Ton, Toff) (Max) | 15ns, 7ns |
| Channel Capacitance (CS(off), CD(off)) | 5.5pF, 5.5pF |
| Current - Leakage (IS(off)) (Max) | 200pA (Typ) |
| Number of Circuits | 1 |
