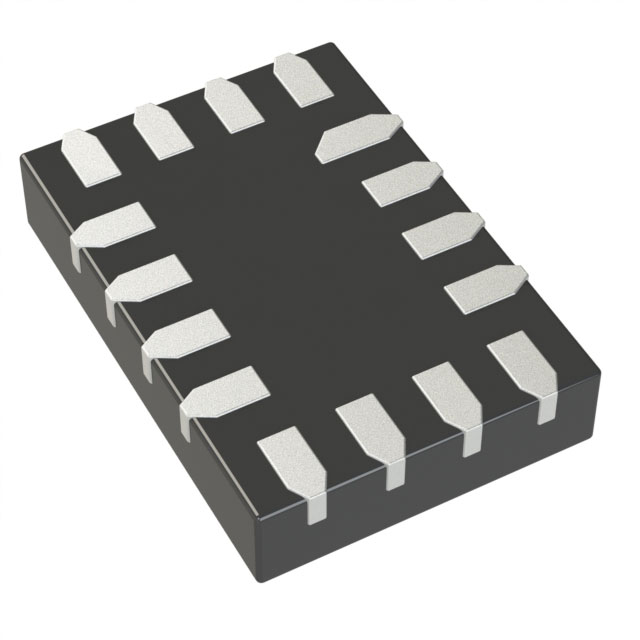

PI3A3899ZTAEX
IC SWITCH DPDT X 2 2.4OHM 16UQFNManufacturer: Diodes Incorporated
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 2:2 2.4Ohm 16-UQFN (1.8x2.6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 2.4Ohm |
| -3db Bandwidth | 330MHz |
| Supplier Device Package | 16-UQFN (1.8x2.6) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 13pC |
| Crosstalk | -100dB @ 1MHz |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 200mOhm |
| Switch Time (Ton, Toff) (Max) | 8ns, 12ns |
| Channel Capacitance (CS(off), CD(off)) | 7pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Number of Circuits | 2 |
Request a Quote
