AP3971P7-G1

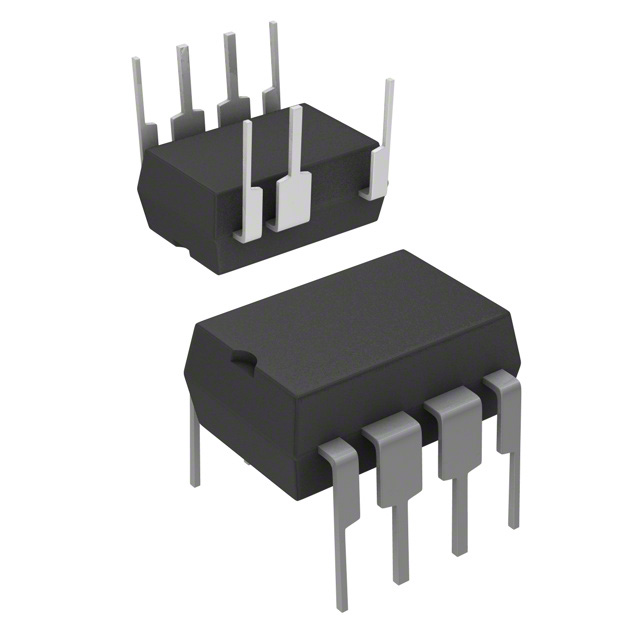

IC OFFLINE SWITCH MULT TOP 7DIPManufacturer: Diodes Incorporated
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Diodes Incorporated AP3971P7-G1 is an offline switching controller designed for AC-DC conversion applications. This component supports both buck and flyback topologies, operating at a fixed switching frequency of 60kHz. It features an integrated switch, simplifying power supply design. The device includes robust fault protection mechanisms, such as over-temperature and short-circuit protection, ensuring operational reliability. With a wide input voltage range of 5.3V to 22V and a startup voltage of 15V, it is suitable for various power requirements up to 12W. The AP3971P7-G1 is housed in a 7-lead PDIP package, facilitating through-hole mounting. Its operating temperature range is -40°C to 85°C. This controller is commonly utilized in consumer electronics and industrial power supplies.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm), 7 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | - |
| Frequency - Switching | 60kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Output Isolation | Either |
| Topology | Buck, Flyback |
| Voltage - Supply (Vcc/Vdd) | 5.3V ~ 22V |
| Supplier Device Package | 7-PDIP |
| Fault Protection | Over Temperature, Short Circuit |
| Voltage - Start Up | 15 V |
| Control Features | - |
| Power (Watts) | 12 W |
