AP39303S16-13

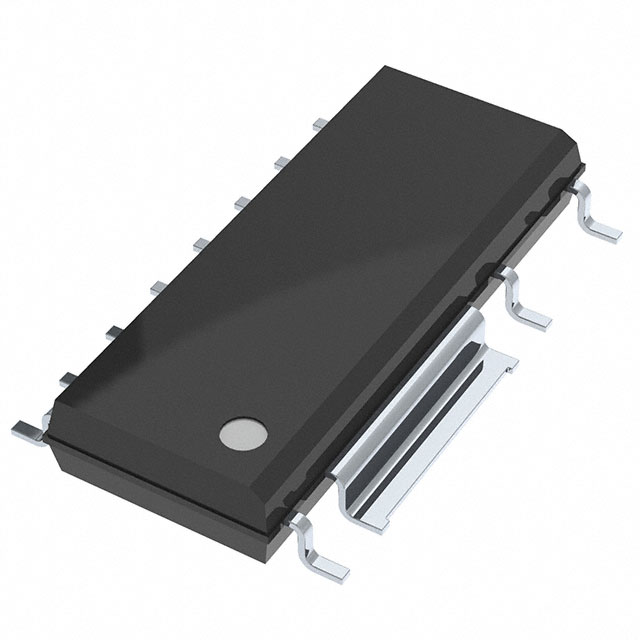

IC OFFLINE SWITCH FLYBACK 16HSOPManufacturer: Diodes Incorporated
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
The Diodes Incorporated AP39303S16-13 is a highly integrated offline flyback controller designed for efficient power conversion. This component operates within a switching frequency range of 24kHz to 120kHz, featuring a 700V breakdown voltage and a 15.8V startup voltage. It supports a supply voltage range of 10V to 28V. The AP39303S16-13 incorporates internal switching capabilities and provides robust fault protection, including current limiting, overload, over-temperature, and over-voltage protection. Its isolated topology is housed in a 16-HSOP package suitable for surface mounting. This device finds application in various power supply designs, including consumer electronics and industrial equipment. The component is supplied on a tape and reel in a 16-SOIC package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width), 12 Leads, Fused Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | - |
| Frequency - Switching | 24kHz ~ 120kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 28V |
| Supplier Device Package | 16-HSOP |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Voltage - Start Up | 15.8 V |
| Control Features | - |
