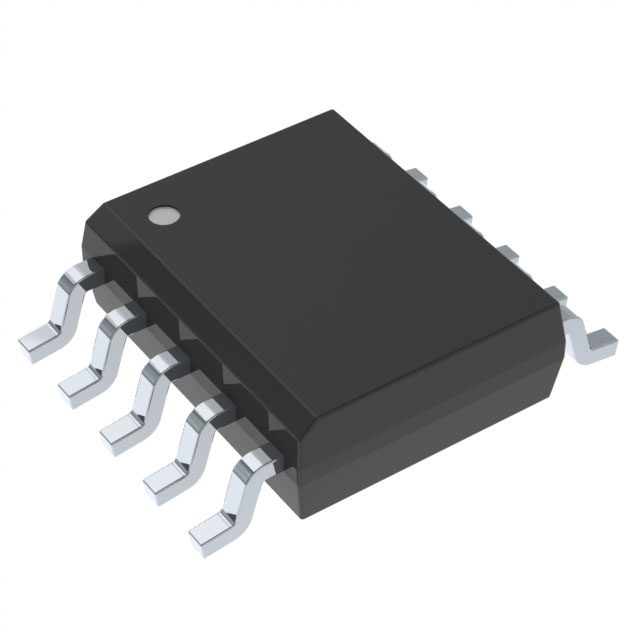

AP3306S10-13
ACDC PWM SWITCHER SO-10 T&R 2.5KManufacturer: Diodes Incorporated
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 130kHz, 200kHz 10-SO Type A1
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-SOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | - |
| Frequency - Switching | 130kHz, 200kHz |
| Internal Switch(s) | No |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 50V |
| Supplier Device Package | 10-SO Type A1 |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Voltage - Start Up | 15.8 V |
| Control Features | Soft Start |
| Grade | Automotive |
| Qualification | AEC-Q100 |
