AP3304VW6-7
ACDC PWM Switcher SOT26 T&R 3KManufacturer: Diodes Incorporated
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More

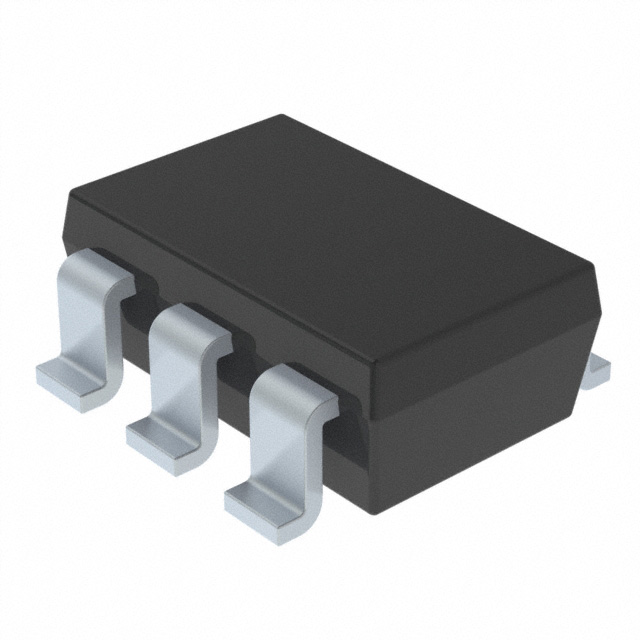

Diodes Incorporated AP3304VW6-7 is an AC/DC offline PWM switcher designed for flyback topologies. This component features integrated switching capabilities with a configurable switching frequency ranging from 23kHz to 100kHz. Control features include frequency control and soft start, enhancing system stability and performance. The device offers robust fault protection, encompassing current limiting, over-voltage protection, and short-circuit protection. Operating within a voltage supply range of 10V to 50V, with a startup voltage of 15.8V, the AP3304VW6-7 is housed in a SOT-26 (Type A1) package suitable for surface mounting. This component is utilized in power supply designs for consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | - |
| Frequency - Switching | 23kHz ~ 100kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 50V |
| Supplier Device Package | SOT-26 (Type A1) |
| Fault Protection | Current Limiting, Over Voltage, Short Circuit |
| Voltage - Start Up | 15.8 V |
| Control Features | Frequency Control, Soft Start |
