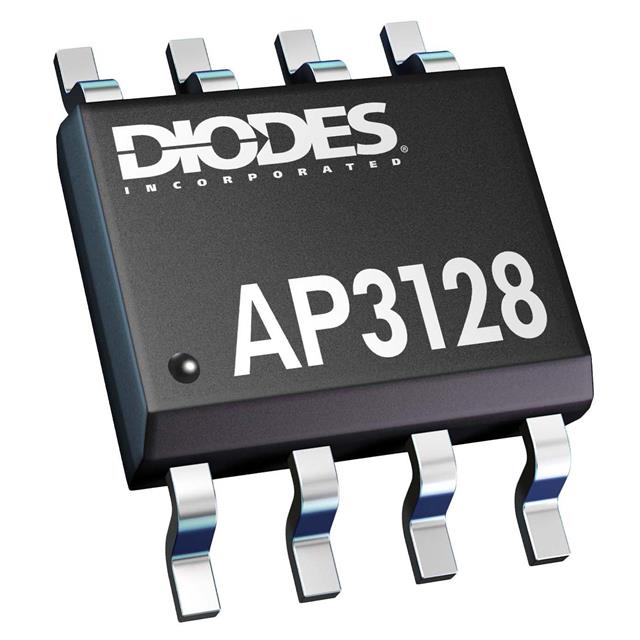

AP3128S-13
ACDC PWM SWITCHER SO-8 T&R 2.5KManufacturer: Diodes Incorporated
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Diodes Incorporated AP3128S-13 is an offline AC/DC PWM switcher housed in an 8-SOIC package. This component features an integrated 700V power switch, enabling flyback converter designs with switching frequencies selectable between 23kHz and 105kHz. The device supports a wide input voltage range from 10V to 50V and incorporates comprehensive fault protection, including current limiting, overload, over-temperature, and over-voltage protection. Soft-start functionality is also integrated to manage inrush current. The AP3128S-13 is suitable for applications requiring isolated power conversion, commonly found in consumer electronics and industrial power supplies. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | - |
| Frequency - Switching | 23kHz ~ 105kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 50V |
| Supplier Device Package | 8-SO Type A1 |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | Soft Start |
