XREWHT-L1-0000-00E02-RND-7LED
LED MOD XLAMP COOL WH RND 6350KManufacturer: DigiKey/Cree
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

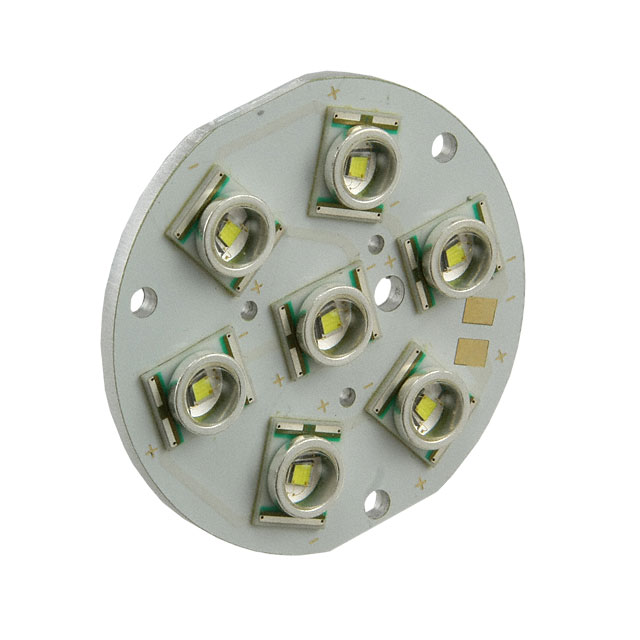

LED Lighting COBs Engines Modules LED Module XLamp® XR-E White, Cool Round
Additional Information
Series: XLamp® XR-ERoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 40.00mm Dia |
| Type | LED Module |
| Configuration | Round |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Height | 6.40mm |
| Current - Test | 350mA |
| Viewing Angle | 90° |
| Lens Type | Domed |
| Current - Max | 1A |
| Lumens/Watt @ Current - Test | 102 lm/W |
| CCT (K) | 6350K |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 118lm (114lm ~ 122lm) |
