FS-352
IC MOD ARM7TDMI 55MHZ 16MBManufacturer: Digi
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

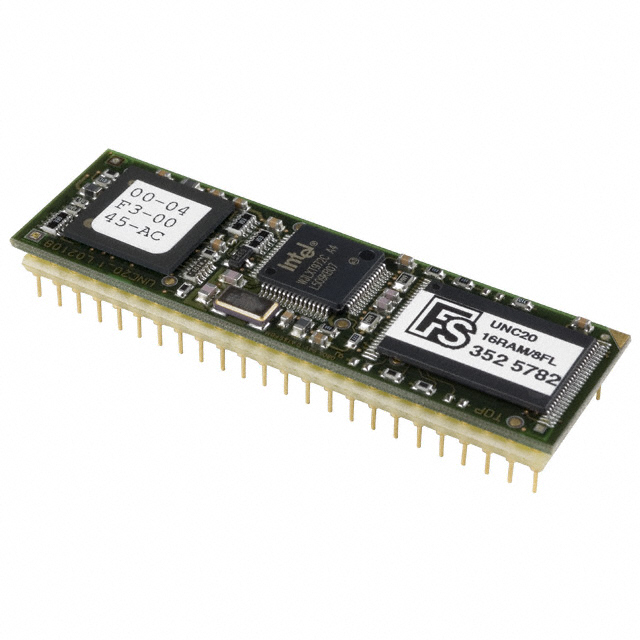

The Digi FS-352 is an embedded module featuring the ARM7TDMI, NS7520 core processor operating at 55MHz. This module is equipped with 16MB of RAM and 8MB of Flash memory, providing substantial resources for embedded applications. The FS-352 is housed in a 48-DIP package with dimensions of 2.480" L x 0.730" W (62.90mm x 18.50mm). Its robust design supports an operating temperature range of 0°C to 70°C. This component is suitable for use in various industrial automation, networking, and medical device applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Connector Type | 48-DIP |
| Size / Dimension | 2.480"" L x 0.730"" W (62.90mm x 18.50mm) |
| Speed | 55MHz |
| RAM Size | 16MB |
| Operating Temperature | 0°C ~ 70°C |
| Module/Board Type | MPU Core |
| Core Processor | ARM7TDMI, NS7520 |
| Co-Processor | - |
| Flash Size | 8MB |
