20-101-1131
IC MOD RABBIT 4000 58.98MHZ 1MBManufacturer: Digi
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

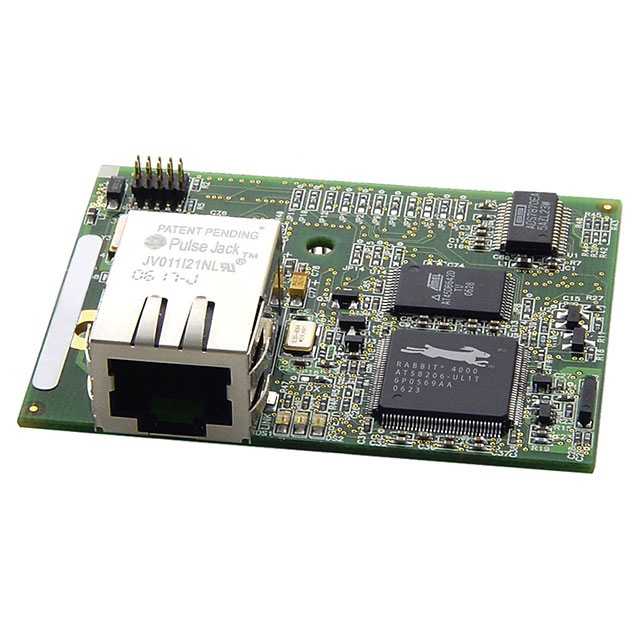

The Digi RabbitCore RCM4200 series module features the Rabbit 4000 core processor operating at 58.98MHz. This embedded module offers 512KB of internal flash memory and 1MB of RAM, complemented by an additional 8MB of external flash. Designed for robust performance in demanding environments, it operates within a temperature range of -40°C to 85°C. Connectivity is facilitated via a 2x25 and 2x5 IDC header. The RCM4200 is a compact MPU core, measuring 1.840" L x 2.420" W (47.00mm x 61.00mm). This component is suitable for applications in industrial automation, building control, and remote device management.
Additional Information
Series: RabbitCore RCM4200RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Connector Type | IDC Header 2x25, 2x5 |
| Size / Dimension | 1.840"" L x 2.420"" W (47.00mm x 61.00mm) |
| Speed | 58.98MHz |
| RAM Size | 1Mb |
| Operating Temperature | -40°C ~ 85°C |
| Module/Board Type | MPU Core |
| Core Processor | Rabbit 4000 |
| Co-Processor | - |
| Flash Size | 512KB (Internal), 8MB (External) |
Request a Quote
Clients Also Buy

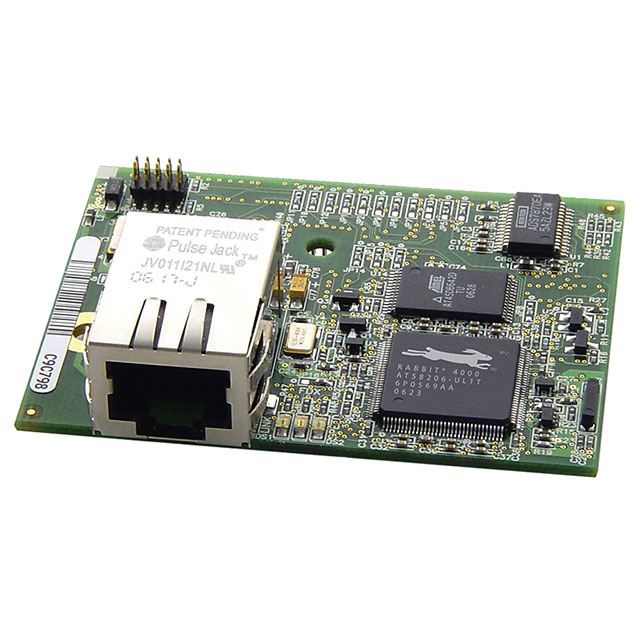

20-101-1132
