20-101-1067
IC MOD RABBIT 3000 44.2MHZ 1MBManufacturer: Digi
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

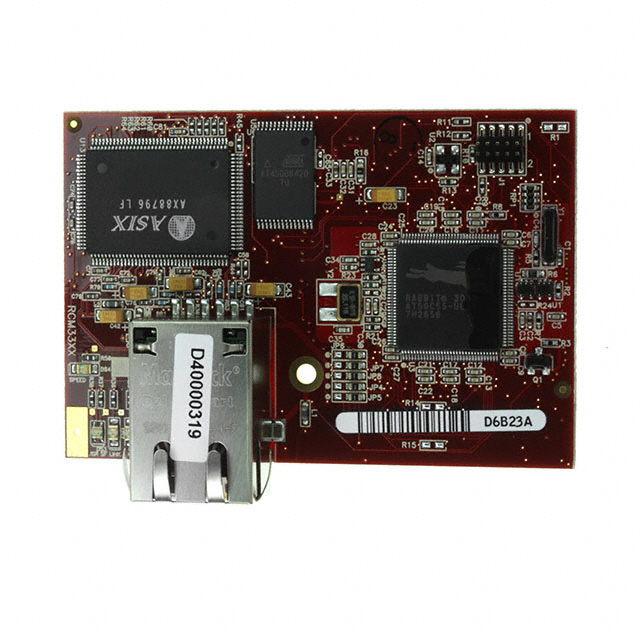

The Digi RabbitCore RCM3305 is an embedded MPU module featuring the Rabbit 3000 core processor operating at 44.2MHz. This module provides 1Mb of RAM and includes 512KB of internal flash memory, expandable with 8MB of external flash. Designed for robust performance, it operates within a temperature range of -40°C to 70°C. Connectivity is facilitated by two 2x17 IDC headers and one 2x5 IDC header. Typical applications for this component include industrial automation, data acquisition systems, and control applications where reliable processing power and memory are critical. The module's dimensions are 1.850" L x 2.730" W (47.00mm x 69.00mm).
Additional Information
Series: RabbitCore RCM3305RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Connector Type | 2 IDC Headers 2x17, 1 IDC Header 2x5 |
| Size / Dimension | 1.850"" L x 2.730"" W (47.00mm x 69.00mm) |
| Speed | 44.2MHz |
| RAM Size | 1Mb |
| Operating Temperature | -40°C ~ 70°C |
| Module/Board Type | MPU Core |
| Core Processor | Rabbit 3000 |
| Co-Processor | - |
| Flash Size | 512KB (Internal), 8MB (External) |
Request a Quote
