20-101-0961
IC MOD RABBIT 3000 22.1MHZ 256KBManufacturer: Digi
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

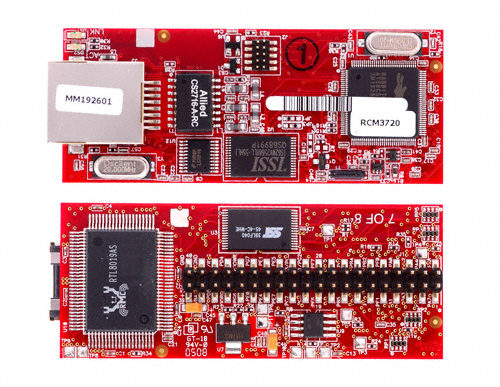

Digi RabbitCore® Embedded Module, part number 20-101-0961, features the Rabbit 3000 core processor operating at 22.1MHz. This MPU core module provides 256KB of RAM, 512KB of internal flash, and 1MB of external flash memory. The 20-101-0961 is designed with an IDC Header 2x20 connector and measures 1.200" L x 2.950" W (30.00mm x 75.00mm). It operates within a temperature range of -40°C to 70°C and is supplied in box packaging. This module is suitable for demanding applications in industrial automation, control systems, and networked embedded solutions.
Additional Information
Series: RabbitCore®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Connector Type | IDC Header 2x20 |
| Size / Dimension | 1.200"" L x 2.950"" W (30.00mm x 75.00mm) |
| Speed | 22.1MHz |
| RAM Size | 256KB |
| Operating Temperature | -40°C ~ 70°C |
| Module/Board Type | MPU Core |
| Core Processor | Rabbit 3000 |
| Co-Processor | - |
| Flash Size | 512KB (Internal), 1MB (External) |
Request a Quote
