20-101-0488
IC MOD RABBIT 2000 22.1MHZ 512KBManufacturer: Digi
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More
The Digi RabbitCore RCM2200 is a compact embedded module featuring the Rabbit 2000 microprocessor running at 22.1MHz. This MPU core module provides 512KB of Flash memory and 512KB of RAM, facilitating efficient control and data processing. Connectivity is established via two 2x13 IDC headers. The RCM2200 is designed for demanding applications within the automation, industrial control, and networking sectors. Its operating temperature range is 0°C to 70°C. The module measures 1.600" L x 2.300" W (41.00mm x 58.00mm) and is supplied in box packaging.
Additional Information
Series: RabbitCore RCM2200RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Connector Type | 2 IDC Headers 2x13 |
| Size / Dimension | 1.600"" L x 2.300"" W (41.00mm x 58.00mm) |
| Speed | 22.1MHz |
| RAM Size | 512KB |
| Operating Temperature | 0°C ~ 70°C |
| Module/Board Type | MPU Core |
| Core Processor | Rabbit 2000 |
| Co-Processor | - |
| Flash Size | 512KB |
Request a Quote
Clients Also Buy

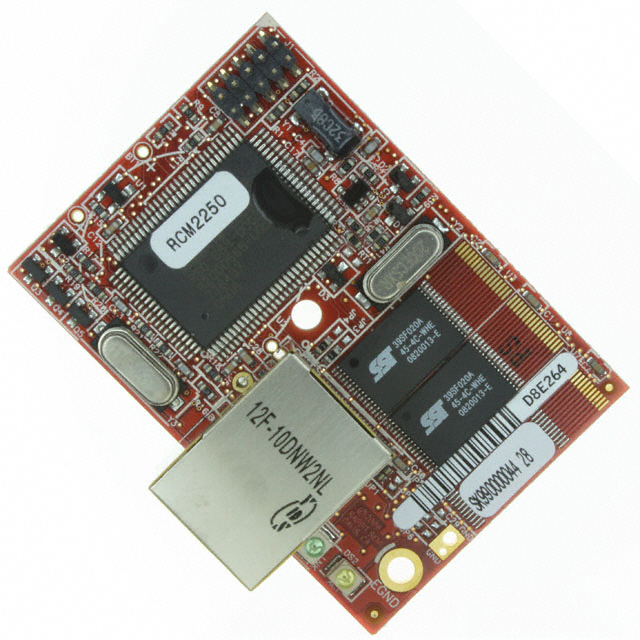

20-101-0494
IC MOD RABBIT 2000 22.1MHZ 512KB

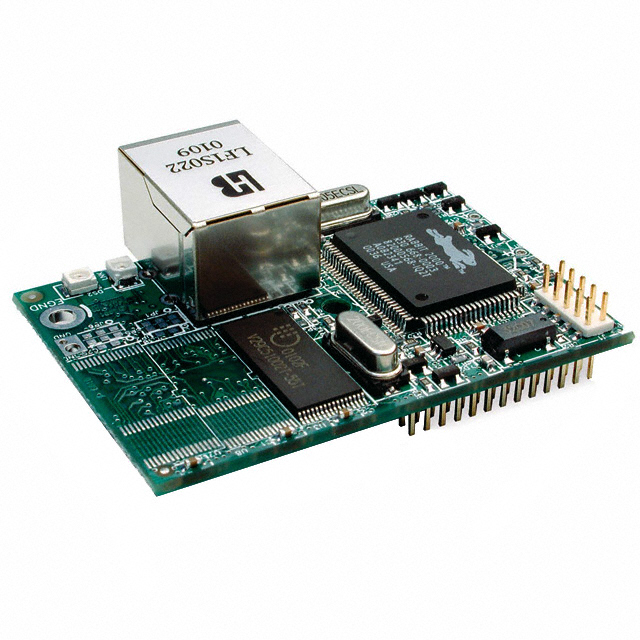

20-101-0454
