6251121314F

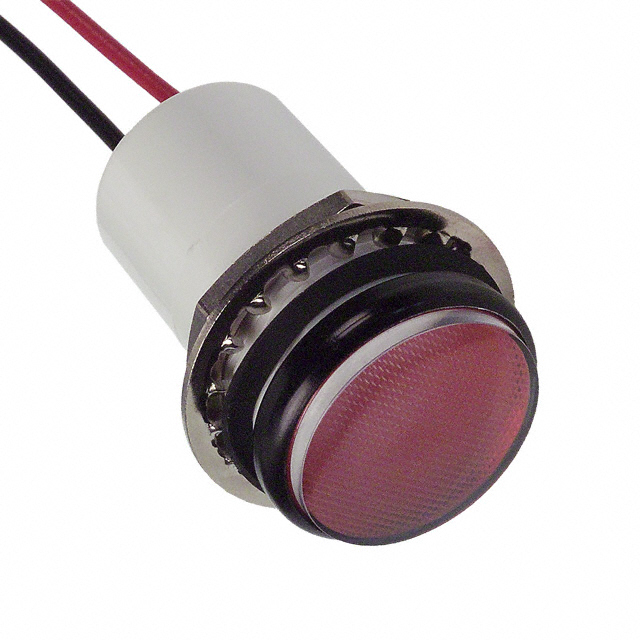

625 LED PMI 16MM RGB 3VDC W/ TERManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Red, Green, Blue (RGB) Clear 3V Red, 12V Green, 24V Blue 15mA Red, 15mA Green, 15mA Blue Quick Connect - 0.110"" (2.8mm)
Additional Information
Series: 625RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 15mA Red, 15mA Green, 15mA Blue |
| Voltage | 3V Red, 12V Green, 24V Blue |
| Type | LED |
| Millicandela Rating | 3000mcd Red, 5000mcd Green, 1000mcd Blue |
| Termination Style | Quick Connect - 0.110"" (2.8mm) |
| Lens Color | Colorless |
| Viewing Angle | - |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.63"" (16.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | Red, Green, Blue (RGB) |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 9.40mm Dia |
