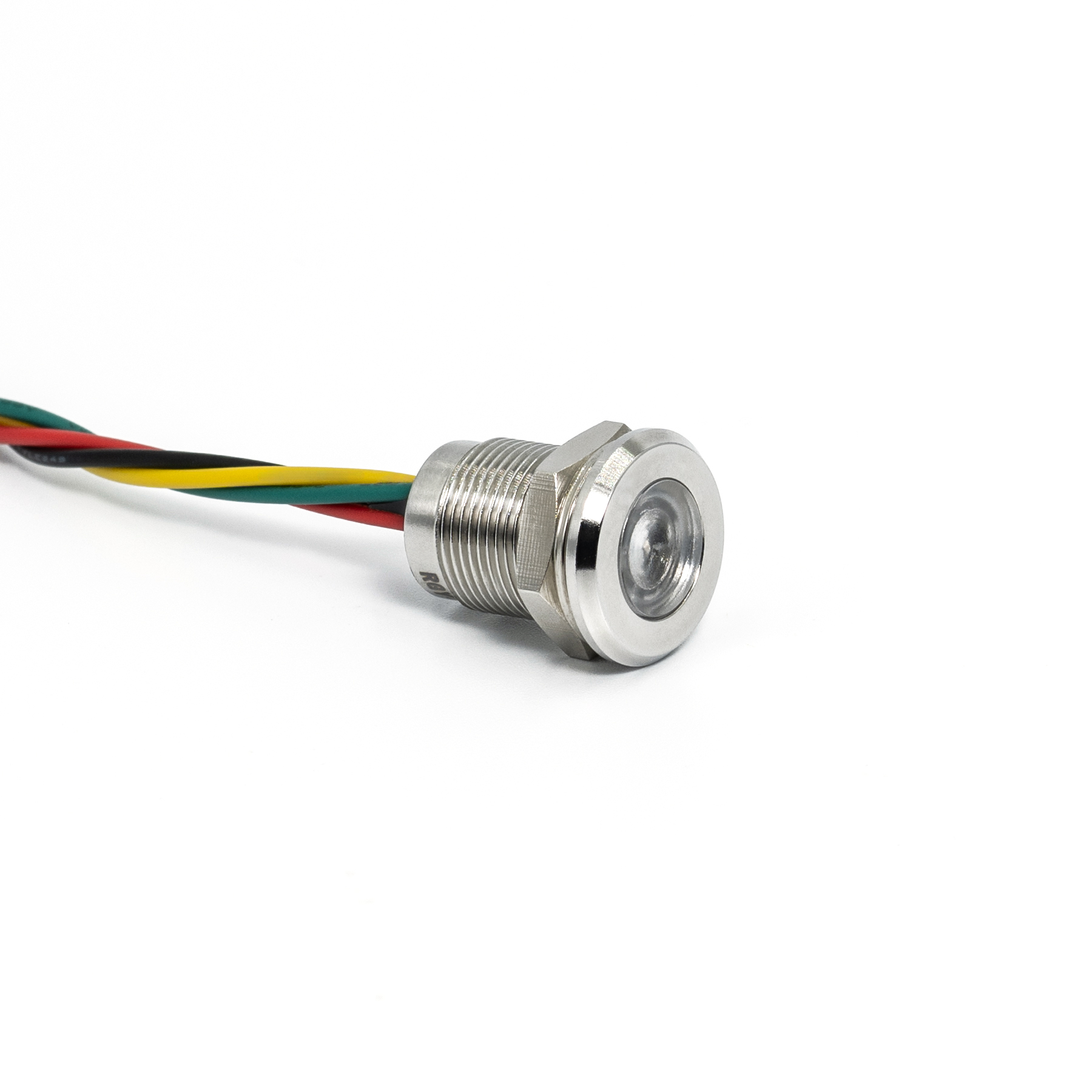

6241144317F
624 LED PMI 12MM RGY 24VDC W/ WIManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Green, Red, Yellow Clear 12V Green, 3V Red, 24V Yellow 15mA Green, 15mA Red, 15mA Yellow Wire Leads - 6.000"" (152.40mm)
Additional Information
Series: 624RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 15mA Green, 15mA Red, 15mA Yellow |
| Voltage | 12V Green, 3V Red, 24V Yellow |
| Type | LED |
| Millicandela Rating | 2500mcd Green, 3000mcd Red, 3000mcd Yellow |
| Termination Style | Wire Leads - 6.000"" (152.40mm) |
| Lens Color | Colorless |
| Viewing Angle | - |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.47"" (12.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | Green, Red, Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 9.14mm Dia |
Request a Quote
Clients Also Buy

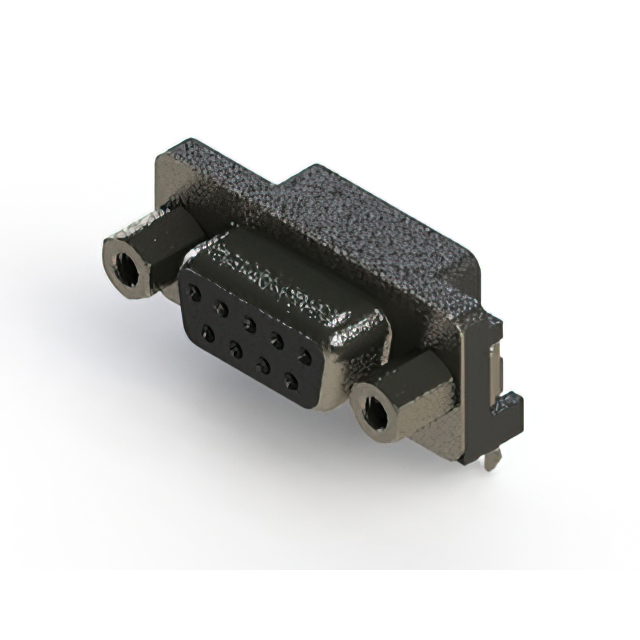

624-009-261-033
CONN D SUB RCPT 9POS R/A .200

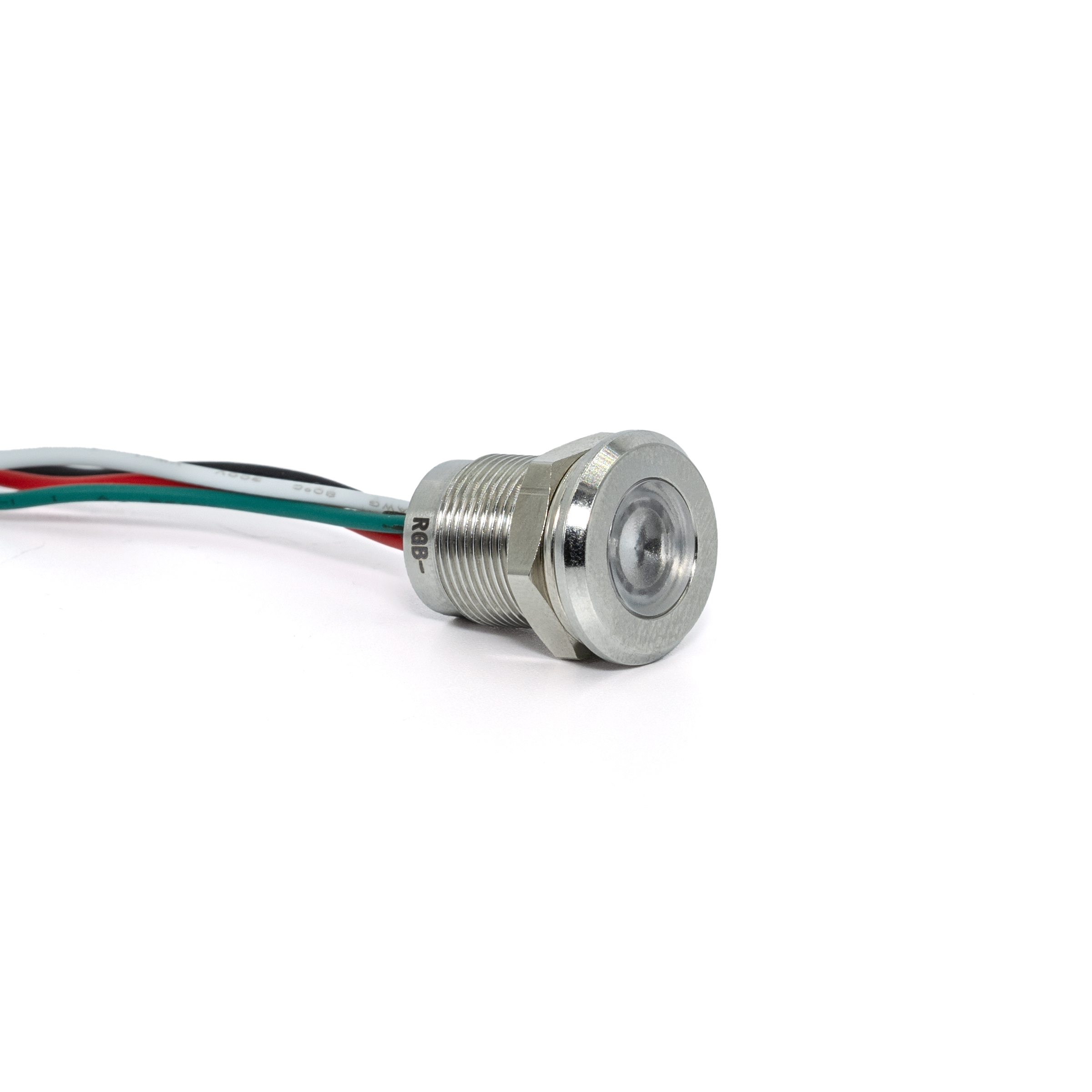

6241121314F
