6201144117F

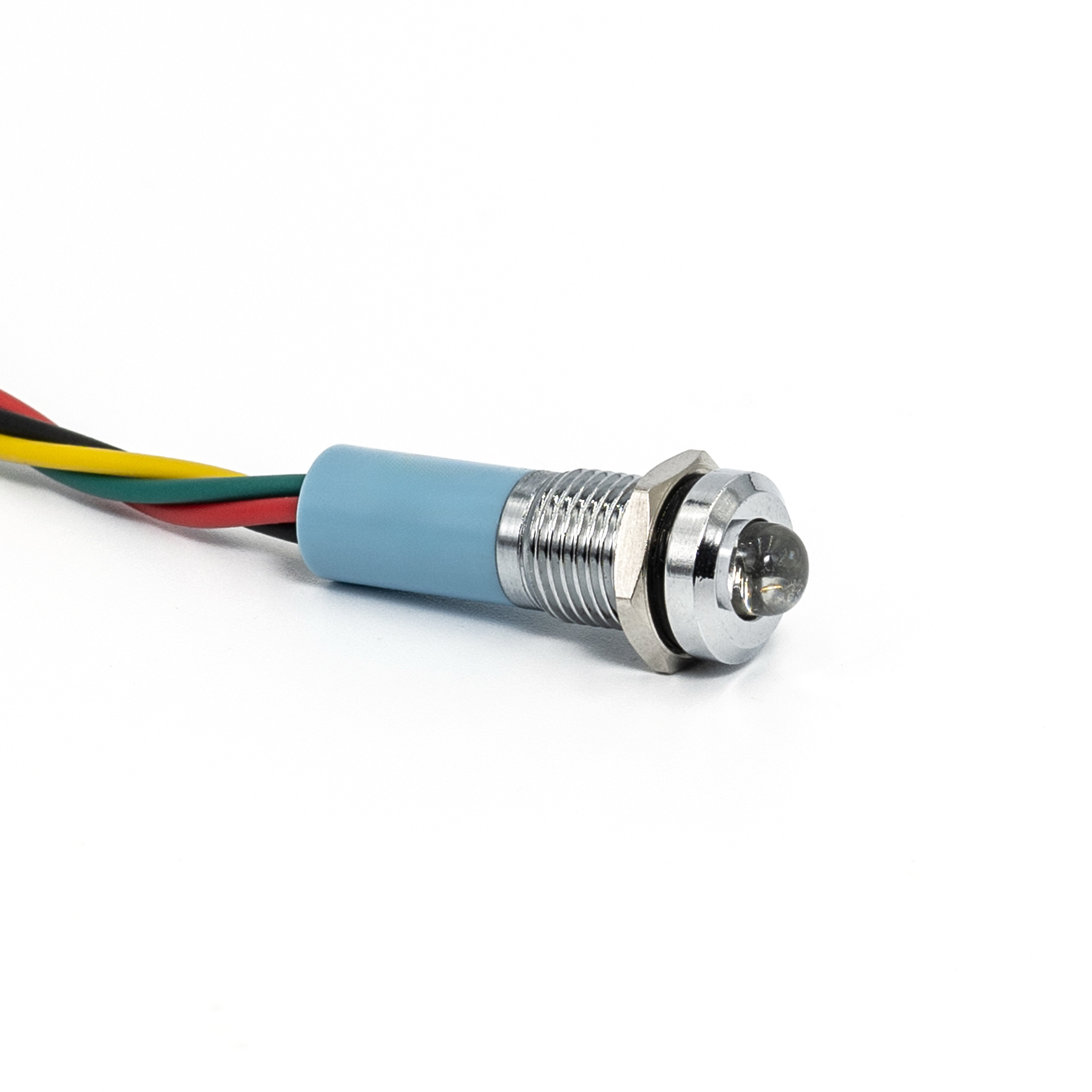

620 LED PMI 8MM PROTRUDING RGYManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Green, Red, Yellow Clear 12V Green, 3V Red, 24V Yellow 15mA Green, 15mA Red, 15mA Yellow Wire Leads - 6.000"" (152.40mm)
Additional Information
Series: 620RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Current | 15mA Green, 15mA Red, 15mA Yellow |
| Voltage | 12V Green, 3V Red, 24V Yellow |
| Type | LED |
| Millicandela Rating | 3000mcd Green, 5000mcd Red, 6500mcd Yellow |
| Termination Style | Wire Leads - 6.000"" (152.40mm) |
| Lens Color | Colorless |
| Viewing Angle | - |
| Ingress Protection | IP67 |
| Ratings | DC |
| Panel Cutout Dimensions | 0.32"" (8.00mm) |
| Wavelength - Peak | - |
| Lens Transparency | Clear |
| Lamp Color | Green, Red, Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 4.83mm Dia |
