6161232140F
LED PANEL MNT 16MM GREEN 24VDCManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

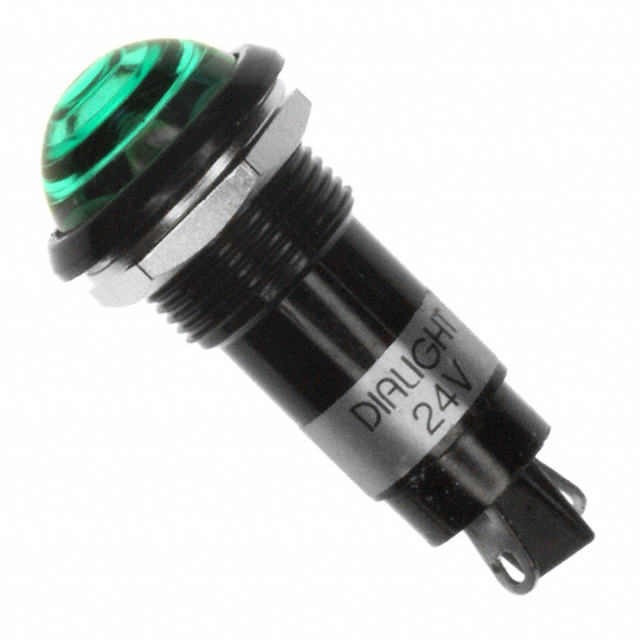

Dialight 616 Series LED Panel Indicator, part number 6161232140F, offers a vibrant green illumination for 24VDC applications. This panel mount indicator features an 18.00mm diameter green lens with a domed top, designed for clear visual signaling. The unit requires a 16.26mm (0.64 inch) round panel cutout for installation. With a typical millicandela rating of 110mcd, it provides reliable visibility in various industrial and commercial control panel environments. This component is suitable for applications requiring robust panel indication, including industrial automation, power distribution equipment, and general machinery control.
Additional Information
Series: 616RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | - |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | 110mcd |
| Termination Style | - |
| Lens Color | Green |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | DC |
| Panel Cutout Dimensions | 0.64"" (16.26mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 18.00mm Dia |
