6161132140F
LED PANEL MNT 16MM RED 24VDCManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

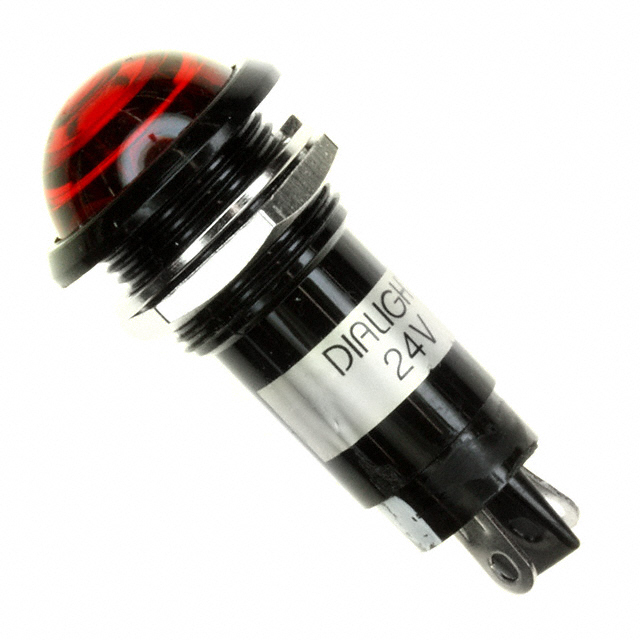

Dialight 616 Series LED Panel Indicator, part number 6161132140F. This robust panel mount LED features a 16mm panel cutout and a 24VDC operating voltage. The bright red illumination is provided by a high-efficiency LED with a typical millicandela rating of 60mcd, housed within a red, 18mm diameter domed lens. Designed for reliable visual indication in industrial control systems, power distribution units, and automation equipment, this component offers a straightforward panel mounting solution. Supplied in bulk packaging.
Additional Information
Series: 616RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | - |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | 60mcd |
| Termination Style | - |
| Lens Color | Red |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | DC |
| Panel Cutout Dimensions | 0.64"" (16.26mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 18.00mm Dia |
Request a Quote
Clients Also Buy

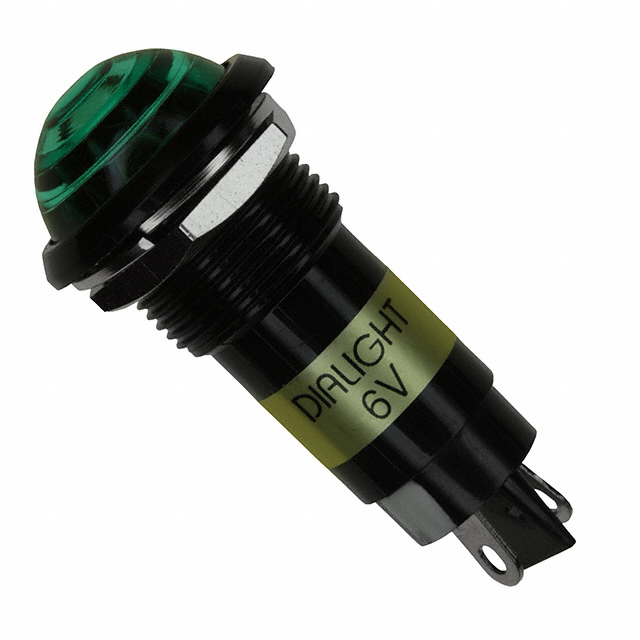

6161232120F
LED PANEL MNT 16MM GREEN 6VDC

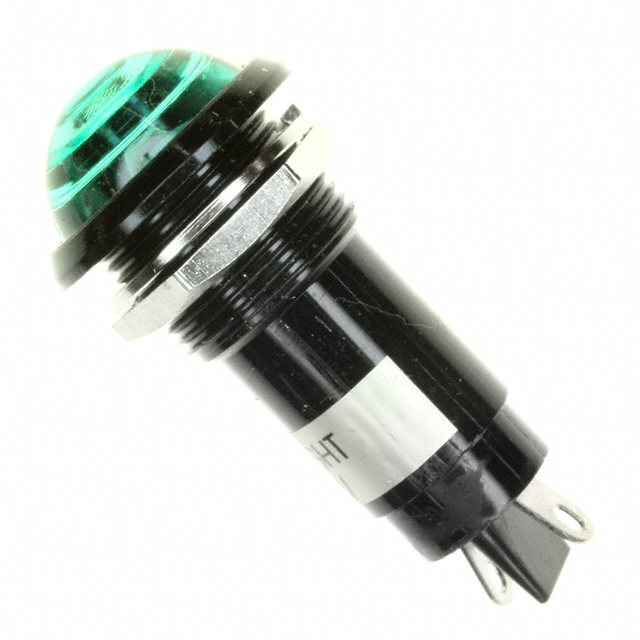

6161232130F
