6092312130
LED PNL MT 9MM 12V CHROME YELLOWManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

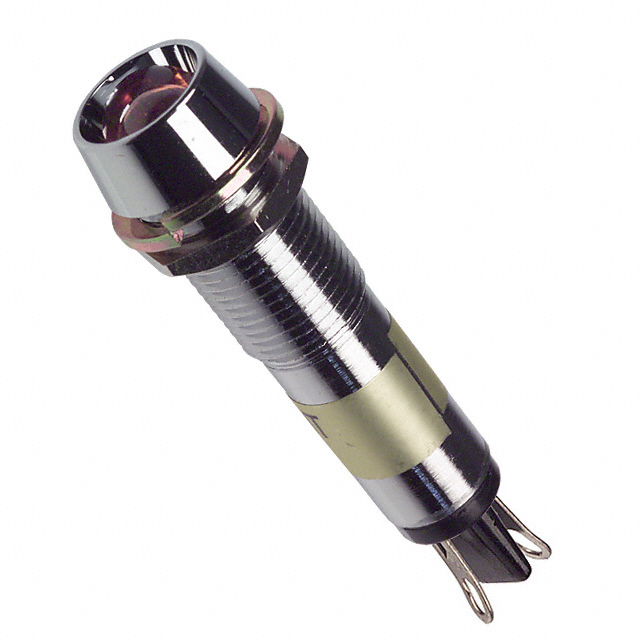

The Dialight 609 Series, part number 6092312130, is a 12V LED panel indicator featuring a vibrant yellow illumination. This component is designed for reliable panel mounting with a standard 9mm (0.37 inch) cutout. It operates at a typical current of 15mA, delivering a brightness of 90mcd. The indicator boasts a durable chrome finish and a round, domed lens measuring 6.10mm in diameter, suitable for clear visual signaling in industrial control, automation, and equipment monitoring applications. This component is supplied in bulk packaging.
Additional Information
Series: 609RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 15mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | 90mcd |
| Termination Style | - |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | - |
| Ratings | DC |
| Panel Cutout Dimensions | 0.37"" (9.40mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 6.10mm Dia |
