5595301001F
LED PANEL YLW DIFF SNAP-IN STRManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

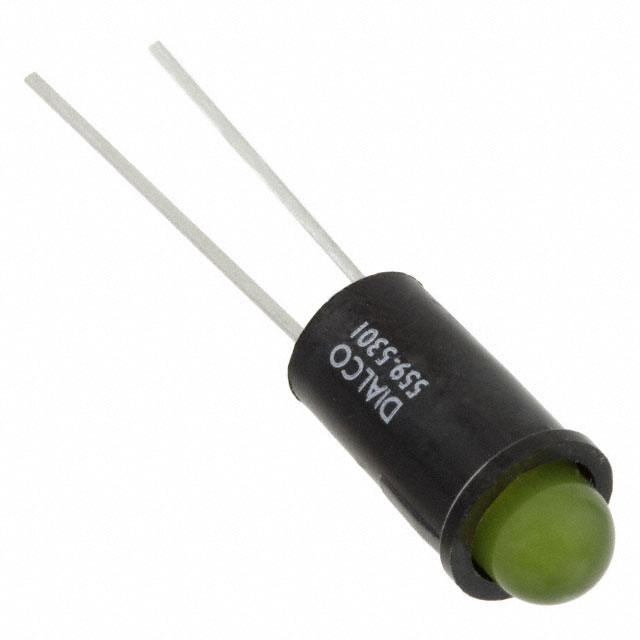

Dialight 559 Series LED Panel Indicator, Part Number 5595301001F, is a yellow diffused T-1 3/4 LED designed for snap-in panel mounting. This component features a 50° viewing angle, a typical forward voltage of 2.2V, and a maximum forward current of 25mA, delivering a millicandela rating of 34mcd at its peak wavelength of 585nm. The diffused lens provides a uniform light output. Terminating in PC pins, it requires a 0.25" (6.35mm) round panel cutout. This indicator is commonly utilized in industrial control, instrumentation, and equipment status indication applications. Supplied in bulk packaging.
Additional Information
Series: 559RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 25mA |
| Voltage | 2.2V |
| Type | LED |
| Millicandela Rating | 34mcd |
| Termination Style | PC Pin |
| Lens Color | Yellow |
| Viewing Angle | 50° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 585nm |
| Lens Transparency | Diffused |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
