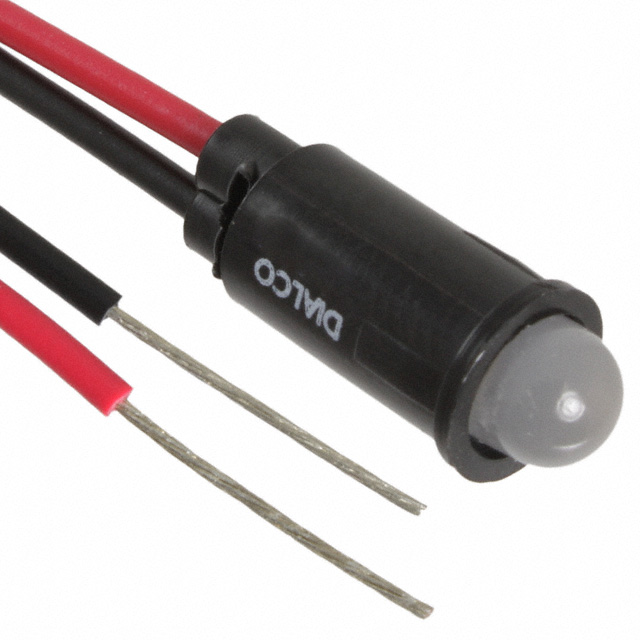

5593201007F
LED PANEL YLW/GRN SNAP-IN 14""LDManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Green, Yellow Diffused 50° 2.1V Green, 2.1V Yellow 30mA Green, 20mA Yellow Wire Leads - 12"" (304.80mm)
Additional Information
Series: 559RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 30mA Green, 20mA Yellow |
| Voltage | 2.1V Green, 2.1V Yellow |
| Type | LED |
| Millicandela Rating | 19mcd Green, 12.6mcd Yellow |
| Termination Style | Wire Leads - 12"" (304.80mm) |
| Lens Color | White |
| Viewing Angle | 50° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 565nm Green, 585nm Yellow |
| Lens Transparency | Diffused |
| Lamp Color | Green, Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
