5593101001F

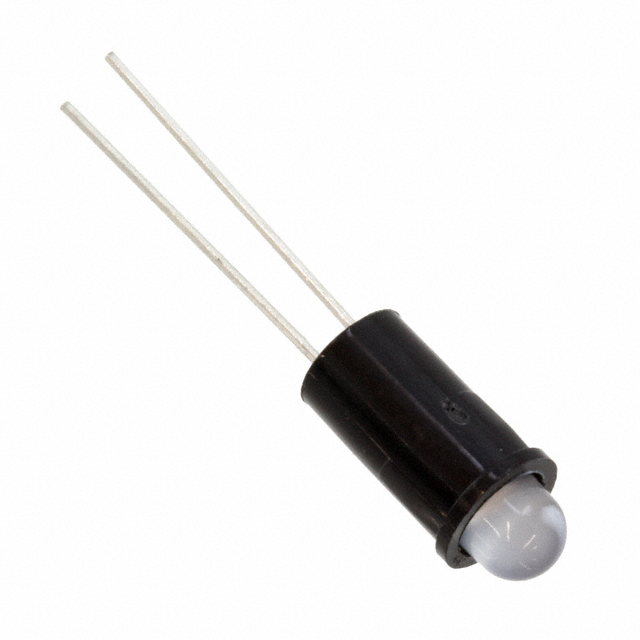

LED PANEL RED/GRN SNAP-IN STRManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Green, Red Diffused 80° 2.1V Green, 1.8V Red 30mA Green, 40mA Red
Additional Information
Series: 559RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 30mA Green, 40mA Red |
| Voltage | 2.1V Green, 1.8V Red |
| Type | LED |
| Millicandela Rating | 20mcd Green, 60mcd Red |
| Termination Style | - |
| Lens Color | White |
| Viewing Angle | 80° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.25"" (6.35mm) |
| Wavelength - Peak | 565nm Green, 660nm Red |
| Lens Transparency | Diffused |
| Lamp Color | Green, Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
