5583101007F

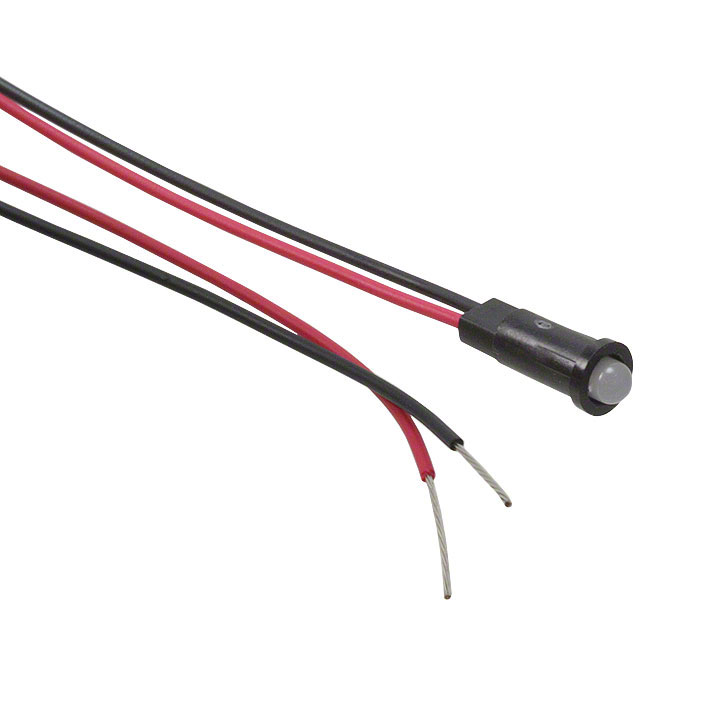

LED PANEL IND RED/GRN SNAP-INManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More
LED Panel Indicator Green, Red 200° 2.1V Green, 1.8V Red 30mA Green, 40mA Red Wire Leads - 14"" (355.60mm)
Additional Information
Series: 558RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 30mA Green, 40mA Red |
| Voltage | 2.1V Green, 1.8V Red |
| Type | LED |
| Millicandela Rating | 3.7mcd Green, 12.6mcd Red |
| Termination Style | Wire Leads - 14"" (355.60mm) |
| Lens Color | - |
| Viewing Angle | 200° |
| Ingress Protection | - |
| Ratings | Vf (Typ), If (Max) |
| Panel Cutout Dimensions | 0.16"" (4.06mm) |
| Wavelength - Peak | 565nm Green, 660nm Red |
| Lens Transparency | - |
| Lamp Color | Green, Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
