5571703203
LED PNL MT 11/16"" 12V WT YELLOWManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

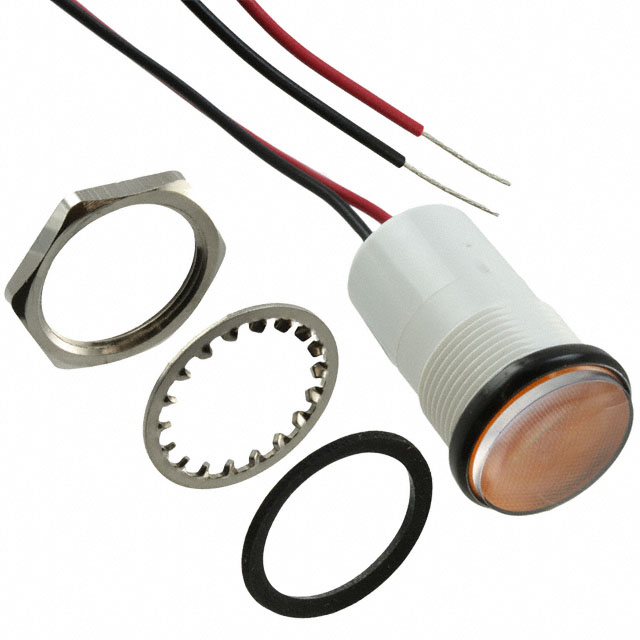

Dialight 557 Series LED Panel Indicator, part number 5571703203, is a panel-mount LED designed for 12V operation. This yellow LED features wire leads with a 0.50" (12.70mm) termination length and a water-resistant design. The indicator conforms to a 0.69" (17.53mm) round panel cutout, with a lens diameter of 17.80mm. It operates at a nominal current of 20mA. This component is suitable for applications in industrial control, equipment status indication, and general signaling across various sectors including manufacturing and automation.
Additional Information
Series: 557RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 0.50"" (12.70mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | Water Resistant |
| Ratings | DC |
| Panel Cutout Dimensions | 0.69"" (17.53mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 17.80mm Dia |
