5571605203
LED PNL MT 11/16"" 24V WT GREENManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

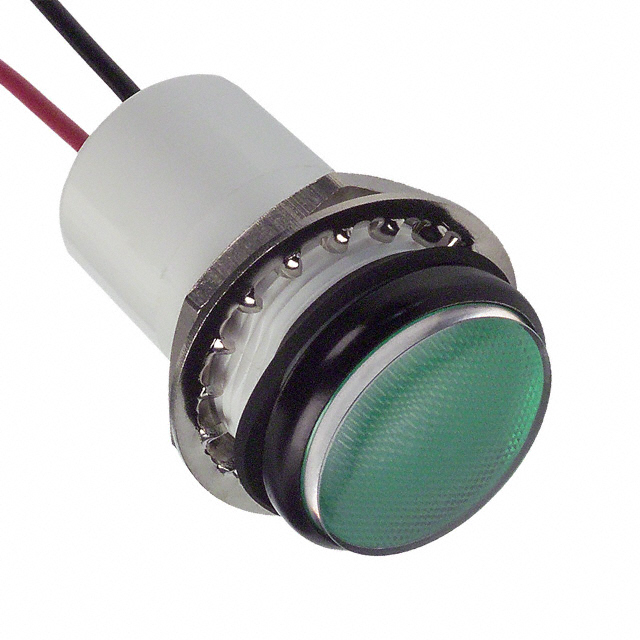

Dialight 557 Series LED Panel Indicator, part number 5571605203, provides a reliable green illumination solution for demanding applications. This component features a 24V operating voltage and a typical current draw of 16mA, terminated with 0.50-inch wire leads for straightforward integration. The panel mount design utilizes a standard 0.69-inch (17.53mm) round cutout, accommodating panel thicknesses. Its water-resistant construction enhances durability in challenging environments. This LED indicator is commonly employed in industrial control panels, automation systems, and heavy equipment where clear visual status indication is critical.
Additional Information
Series: 557RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 16mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 0.50"" (12.70mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | Water Resistant |
| Ratings | DC |
| Panel Cutout Dimensions | 0.69"" (17.53mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 17.80mm Dia |
