5571505203
LED PNL MT 11/16"" 24V WT REDManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

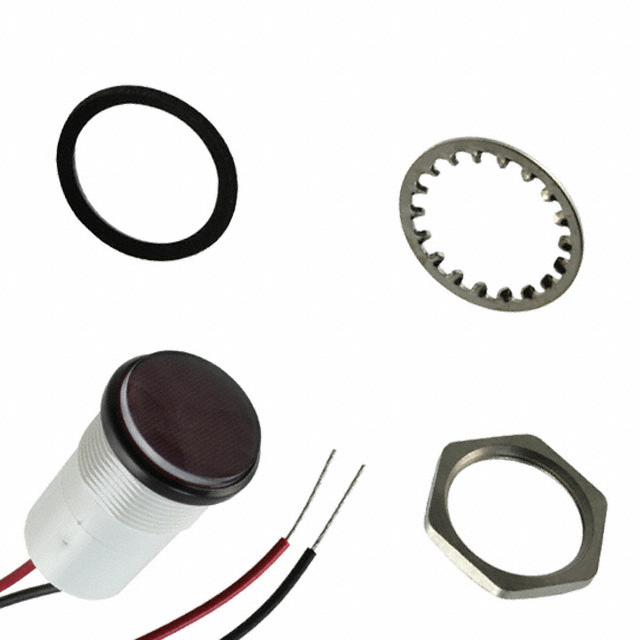

Dialight 557 Series LED Panel Indicator, Part Number 5571505203. This panel mount indicator features a red LED lamp with a 24V operating voltage and a 20mA current draw. Designed for robust applications, it offers water-resistant ingress protection. The unit utilizes wire leads with a 0.50" (12.70mm) length for termination. It has a panel cutout dimension of 0.69" (17.53mm) and a round cutout shape. The lens has a diameter of 17.80mm and a round style with a flat top. This component is suitable for industrial automation, control panels, and heavy equipment applications.
Additional Information
Series: 557RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 0.50"" (12.70mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | Water Resistant |
| Ratings | DC |
| Panel Cutout Dimensions | 0.69"" (17.53mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 17.80mm Dia |
