5571503203
LED PNL MT 11/16"" 12V WT REDManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

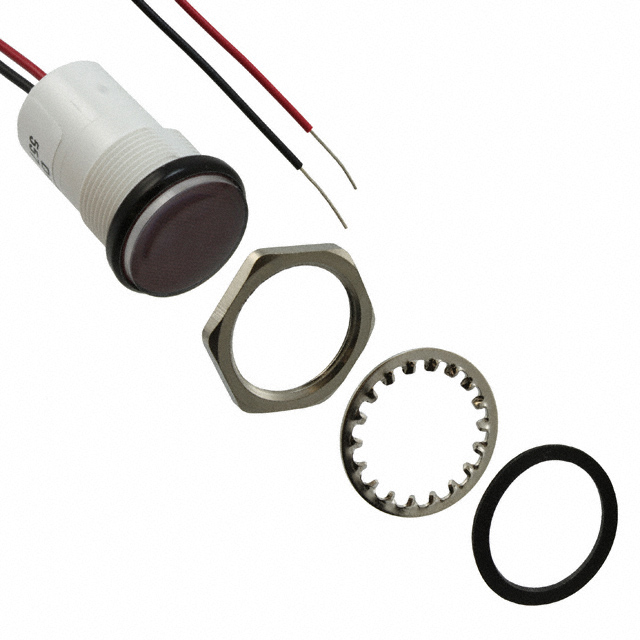

Dialight 557 Series LED panel indicator, part number 5571503203. This component features a red LED with a 12V operating voltage and a 20mA current rating. It is designed for panel mounting with a 0.69-inch (17.53mm) round cutout. The indicator utilizes wire leads with a 0.50-inch (12.70mm) length for termination. With water-resistant ingress protection, this unit is suitable for applications in industrial automation, control panels, and equipment monitoring where reliable visual indication is critical. The lens style is round with a flat top, and the lens diameter is 17.80mm. Supplied in bulk packaging.
Additional Information
Series: 557RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 20mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 0.50"" (12.70mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | Water Resistant |
| Ratings | DC |
| Panel Cutout Dimensions | 0.69"" (17.53mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 17.80mm Dia |
