5571412203
LED PNL MT 11/16"" 5V WT RED/GRNManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

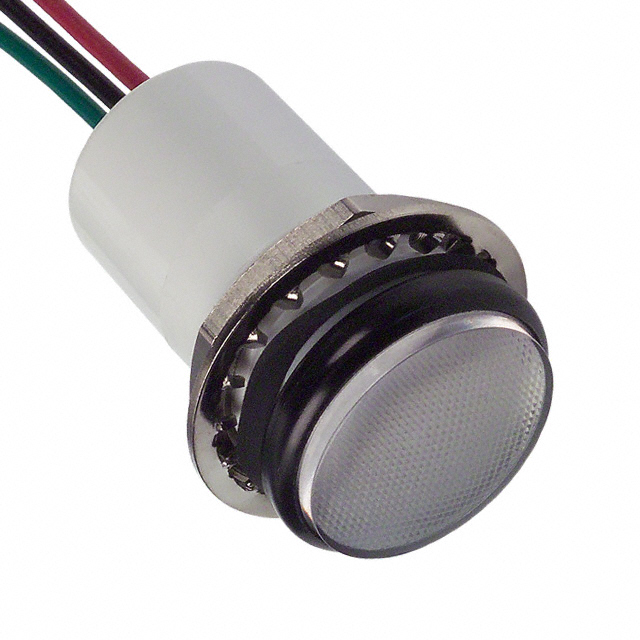

Dialight 557 Series LED Panel Indicator, part number 5571412203. This component features dual-color illumination with distinct Red and Green LED outputs, each operating at 5V and drawing 16mA. The unit is designed for panel mounting with a standard 0.69-inch (17.53mm) round cutout and includes 0.50-inch (12.70mm) wire leads for termination. Its construction offers water resistance. This indicator is suitable for applications in industrial control, instrumentation, and general equipment status indication.
Additional Information
Series: 557RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 16mA Green, 16mA Red |
| Voltage | 5V Green, 5V Red |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Wire Leads - 0.50"" (12.70mm) |
| Lens Color | - |
| Viewing Angle | - |
| Ingress Protection | Water Resistant |
| Ratings | DC |
| Panel Cutout Dimensions | 0.69"" (17.53mm) |
| Wavelength - Peak | - |
| Lens Transparency | - |
| Lamp Color | Green, Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Flat Top |
| Lens Size | 17.80mm Dia |
