5563704304
LED PNL MT 1"" 24V WT DOME YELManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

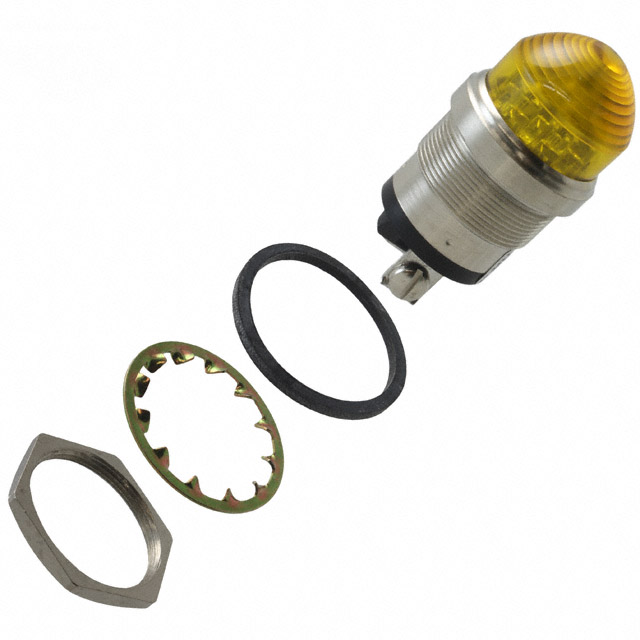

Dialight 556 series LED panel indicator, part number 5563704304. This robust component features a yellow, domed Fresnel lens for optimized visibility. Rated for 24V DC operation at 46mA, it offers IP66 and NEMA 4X ingress protection, making it suitable for harsh environments. Termination is via convenient screw terminals. The 1-inch panel cutout requirement (28.45mm) facilitates straightforward integration into control panels and equipment. Applications include industrial automation, transportation, and general equipment indication.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 46mA |
| Voltage | 24V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Yellow |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | DC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
