5563703304
LED PNL MT 1"" 12V WT DOME YELManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

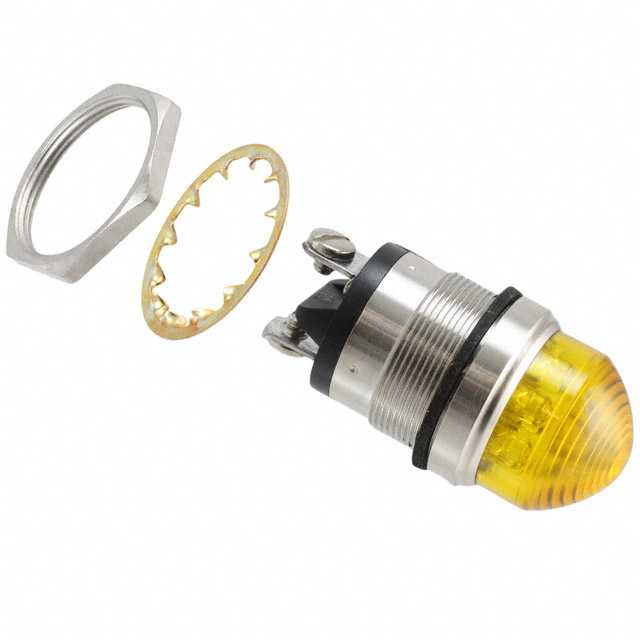

The Dialight 556 Series LED Panel Indicator, part number 5563703304, is a robust solution for front panel illumination. This component features a bright yellow, domed Fresnel lens for effective visibility and is rated for 12V DC operation with a typical current draw of 95mA. Designed for panel mounting, it requires a 1.12" (28.45mm) round cutout and utilizes convenient screw terminals for termination. The unit offers substantial environmental protection with IP66 and NEMA 4X ingress protection ratings, making it suitable for demanding industrial and commercial applications. This indicator is commonly employed in control panels, machinery, and safety equipment where reliable visual status indication is critical.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 95mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Yellow |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | DC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Yellow |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
