5563603304
LED PNL MT 1"" 12V WT DOME GRNManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

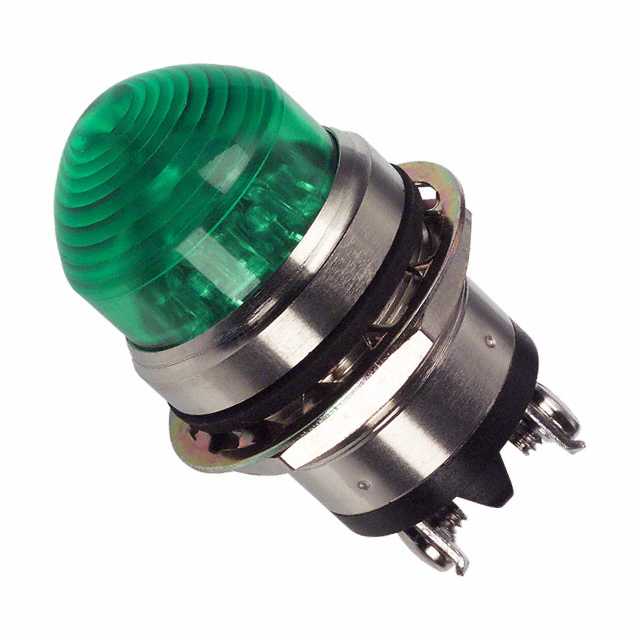

Dialight 556 Series LED Panel Indicator, part number 5563603304, offers a robust green illumination solution for demanding applications. This unit features a 12V operating voltage and a 60mA current draw, terminating via convenient screw terminals. Constructed for durability, it boasts IP66 and NEMA 4X ingress protection, ensuring reliable performance in harsh industrial environments. The Fresnel lens design provides excellent visibility, with a green dome for distinct signaling. This panel indicator is commonly employed in industrial automation, control panels, and heavy equipment, where clear and dependable status indication is critical. The 1.12" (28.45mm) round panel cutout simplifies installation into standard enclosures.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 60mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Green |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | DC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Green |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
