5563505304
LED PNL MT 1"" 125VAC WT DOME REDManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

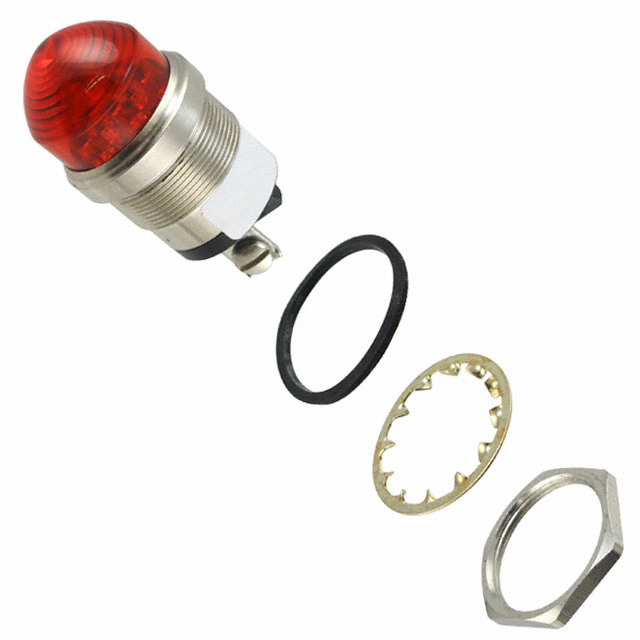

The Dialight 556 Series LED Panel Indicator, part number 5563505304, is a robust component designed for demanding industrial applications. This panel mount LED features a bright red Fresnel lens with a domed top, providing excellent visibility. Operating at 125VAC with a typical current draw of 10.5mA, it offers efficient illumination. The unit is equipped with convenient screw terminals for secure termination and boasts an IP66 and NEMA 4X rating, ensuring superior protection against dust and water ingress. Its 1.12-inch (28.45mm) round panel cutout makes it suitable for integration into a wide range of control panels and equipment. This component is commonly utilized in industrial automation, control systems, and heavy equipment environments where reliable visual indication is critical.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 10.5mA |
| Voltage | 125V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Red |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | AC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
