5563503304
LED PNL MT 1"" 12V WT DOME REDManufacturer: Dialight
Categories: Panel Indicators, Pilot Lights
Quality Control: Learn More

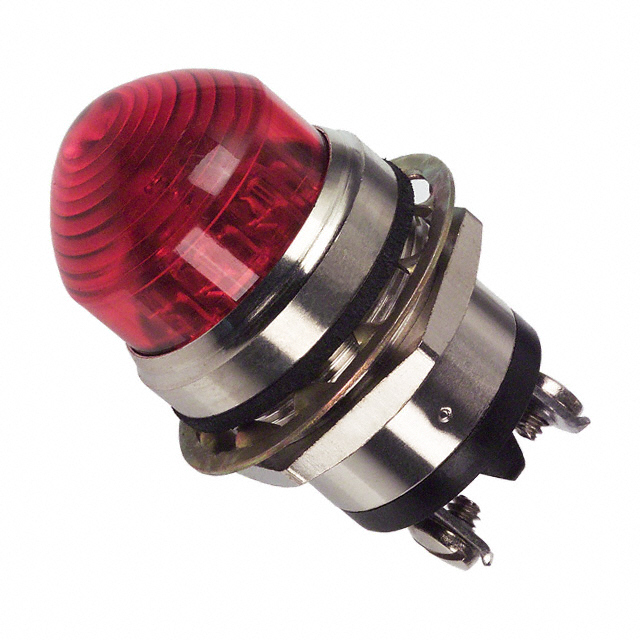

Dialight 556 Series LED Panel Indicator, Part Number 5563503304. This robust indicator features a 12VDC operation with a 95mA current draw. It offers a bright red LED output with a red Fresnel lens for enhanced visibility. Designed for panel mounting with a 1.12-inch (28.45mm) round cutout, this component utilizes convenient screw terminals for termination. Engineered for durability, it boasts IP66 and NEMA 4X ingress protection, making it suitable for demanding industrial environments. Applications include control panels, machinery, and automation systems where reliable visual status indication is critical.
Additional Information
Series: 556RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Current | 95mA |
| Voltage | 12V |
| Type | LED |
| Millicandela Rating | - |
| Termination Style | Screw Terminal |
| Lens Color | Red |
| Viewing Angle | - |
| Ingress Protection | IP66, NEMA 4X |
| Ratings | DC |
| Panel Cutout Dimensions | 1.12"" (28.45mm) |
| Wavelength - Peak | - |
| Lens Transparency | Fresnel |
| Lamp Color | Red |
| Panel Cutout Shape | Round |
| Lens Style | Round with Domed Top |
| Lens Size | - |
Request a Quote
